Factory Options Included
Included
Model
ZS26A
Status
AVAILABLE NOW
Location
Kraluv Dvur (CZ)

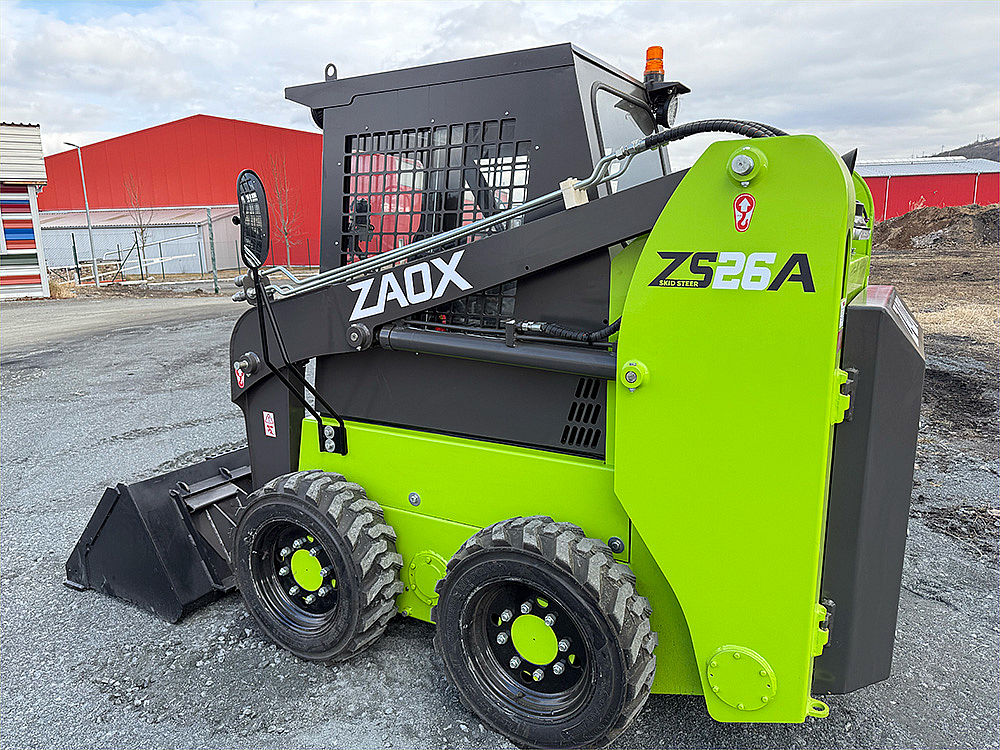

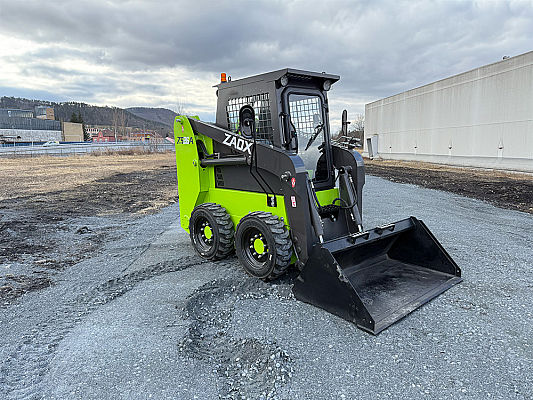

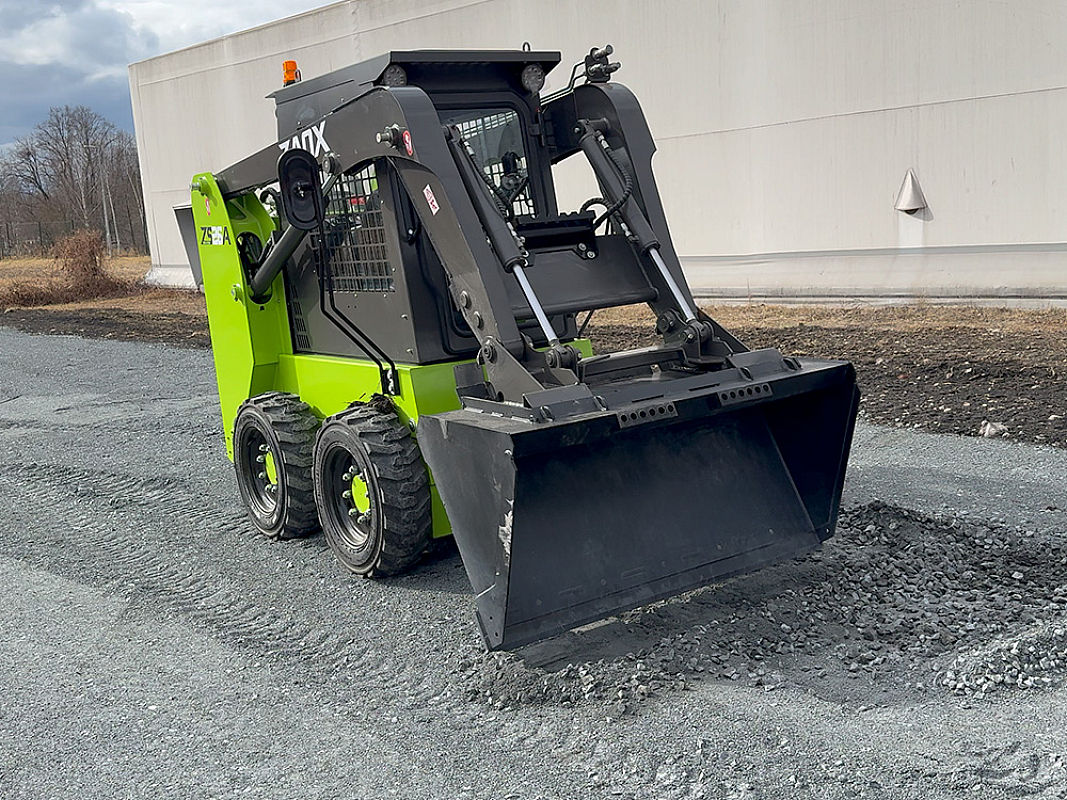

SKID LOADER ZS26A
Total Price (including factory option and selected accessory)$0.00
The Skid loader ZS26A from ZAOX, is a medium-sized machine with an operating weight of approximately 2675 kg, powered by a Korean LS Mtron L3CRV-T7 engine with Euro V standards, which guarantee low fuel consumption.
The machine is equipped with a bucket with a capacity of 0.3 m3, 1400 mm wide and has reached the real unloading height of 2000 mm.
Compactness and ease of use, high power, together with various accessories, make this vehicle an ideal companion for any type of company.
LS Mtron L3CRV-T7 Engine
1400mm Bucket
Integrated Manual Quick Coupler
Hydraulic Transmission
3-Way Auxiliary Hydraulics
Price
Sticker Price : $27,100.00
Base Price : $23,820.00 (Discount Applied 18.8531%)
$22,000.00
(Sticker Price : $27,100.00 )
Discount is not applied on Factory Options and Accessories.
All prices are without VAT
Pay in other currency
View Full Configuration
One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.
Performance
SKID LOADER ZS26A
The ZS26A is a mid-size machine that still stays compact—built for real job-site productivity when you need more push and capacity than a small skid loader. It has an operating weight of about 2675 kg and an Euro V LS Mtron L3CRV‑T7 engine rated at 24.5 kW (57 HP)—strong power with controlled fuel use. It runs a 0.3 m³ bucket that’s 1400 mm wide and offers a 500 kg operating load, so it’s clearly a step up for material handling. With hydraulic transmission and 3-way auxiliary hydraulics, it’s also a true multi-attachment work tool.
SKID LOADER ZS26A
The ZS26A keeps a very classic, almost “retro” design: straight lines, a simple and tough structure, and that traditional skid loader silhouette that instantly says real work. It doesn’t try to look futuristic, and that’s exactly the point—it’s clean, functional, and recognizable, with a look that never goes out of style. Plus, when you lift the arms, you get a real dumping height of 2000 mm, so loading and unloading into containers and piles stays practical and fast. Essential style, but with character—and it looks right on site.
SKID LOADER ZS26A

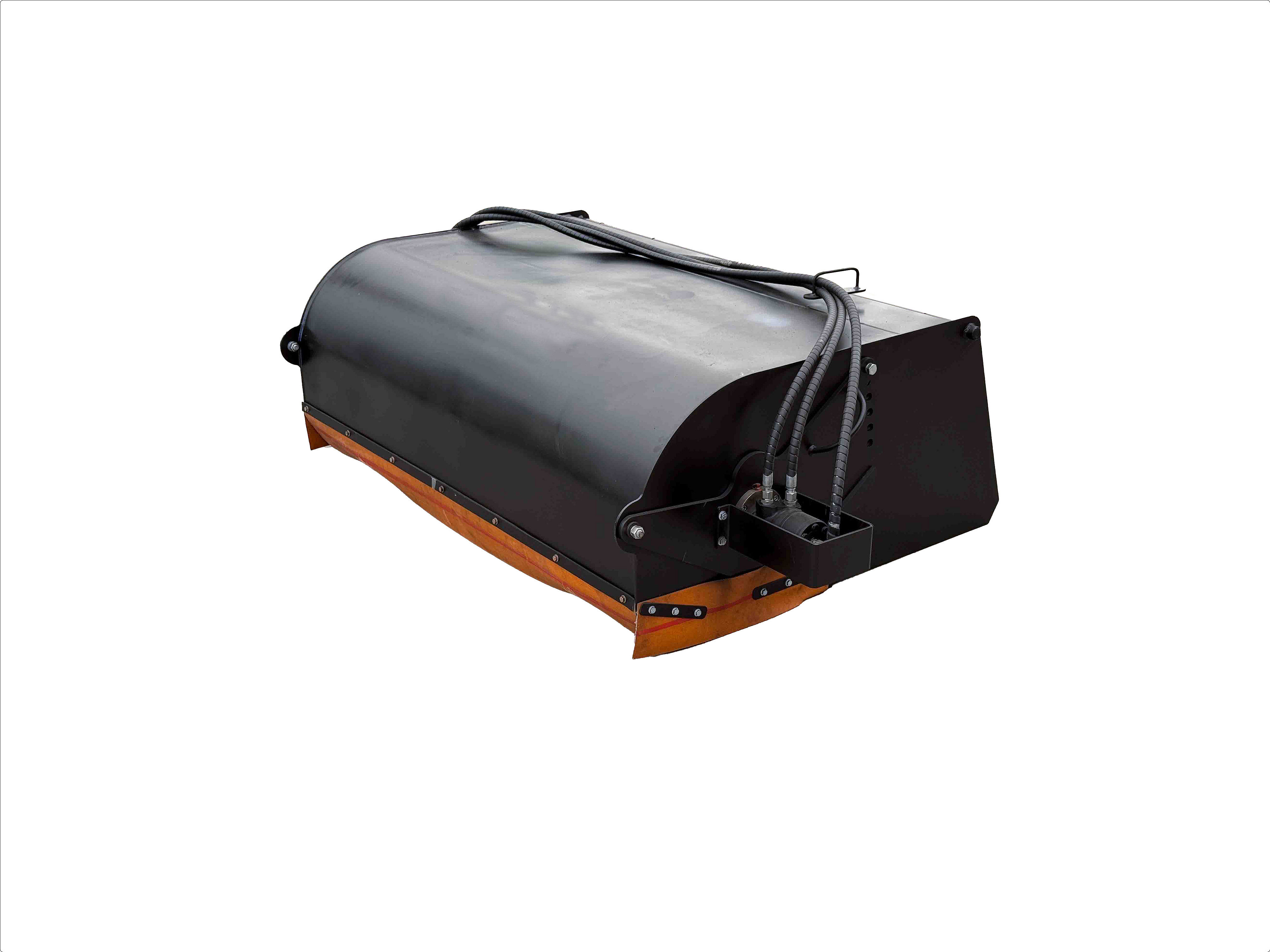

The ZS26A comes ready for attachments: the standard auxiliary hydraulic system lets you run cutters, sweepers, and other hydraulic tools without hassle. So you’re not buying a machine only for loading—you’re getting a real job-site tool carrier. Hook up the right attachment and you can switch tasks in minutes while keeping productivity high. It’s a simple setup that saves time and makes the machine far more versatile.
SKID LOADER ZS26A
The ZS26A has a really “right-sized” footprint: compact enough for tight areas, but with a solid presence that gives you more stability and capacity. Plus, the enclosed cab changes your workday—you stay protected from wind, rain, and dust, in a cleaner, more comfortable space. And with the option for A/C, it becomes a machine you can run for long hours with less stress, even in summer or dusty jobs. It’s a practical mix: job-site productivity with real-machine comfort.
Machine Specification
| (mm) | Overall Operating Height | 2675 |
|---|---|---|
| (mm) | Height to top of cab | 2000 |
| (mm) | Length Without Bucket | 2300 |
| (mm) | Overall Length with Bucket | 2950 |
| (mm) | Width | 1300 |
| (mm) | Bucket Width | 1400 |
| (mm) | Height to bottom of flat bucket | 2558 |
| (mm) | Height to Bucket Hinge Pin | 2725 |
| (mm) | Wheelbase | 879 |
| (mm) | Ground Clearance | 140 |
| (°) | Angle of Departure | 20 |
| (mm) | Distance Between the Rear Axle and the Bumper | 946 |
| (mm) | Tread Width | 1080 |
| (m³) | Bucket capacity | 0.3 |
|---|---|---|
| (km/h） | Max Speed | 10 |
| (L/min) | Rated flux | 60 |
| (L/min) | High Flow Flux | / |
| (Kg) | Operative weight | 2675 |
| Engine Model | LS Mtron L3CRV-T7 | |
| (Kw(HP)/rpm) | Power/revolution speed | 24.5[57]/2600 |
| (L) | Fuel tank capacity | 60 |
| (kg) | Operating load | 500 |
| (mm) | Dumping height | 2000 |
|---|---|---|
| (°) | Dumping angle at maximum height | 40 |
| (mm) | Maximum Dumping Distance from Frame | 790 |
| (°) | Rollback of Bucket on Ground | 30 |
| (°) | Rollback of Bucket at Full Height | 104 |
| (mm) | Front Turning Radius without Bucket | 1760 |
| (mm) | Front Turning Radius | 1296 |
| (mm) | Rear Turning Radius | 1098 |
| Machinery Size | ||
|---|---|---|
| (mm) | Overall Operating Height | 2675 |
| (mm) | Height to top of cab | 2000 |
| (mm) | Length Without Bucket | 2300 |
| (mm) | Overall Length with Bucket | 2950 |
| (mm) | Width | 1300 |
| (mm) | Bucket Width | 1400 |
| (mm) | Height to bottom of flat bucket | 2558 |
| (mm) | Height to Bucket Hinge Pin | 2725 |
| (mm) | Wheelbase | 879 |
| (mm) | Ground Clearance | 140 |
| (°) | Angle of Departure | 20 |
| (mm) | Distance Between the Rear Axle and the Bumper | 946 |
| (mm) | Tread Width | 1080 |
| Tech. Specifications | ||
| (m³) | Bucket capacity | 0.3 |
| (km/h） | Max Speed | 10 |
| (L/min) | Rated flux | 60 |
| (L/min) | High Flow Flux | / |
| (Kg) | Operative weight | 2675 |
| Engine Model | LS Mtron L3CRV-T7 | |
| (Kw(HP)/rpm) | Power/revolution speed | 24.5[57]/2600 |
| (L) | Fuel tank capacity | 60 |
| (kg) | Operating load | 500 |
| Working Range | ||
| (mm) | Dumping height | 2000 |
| (°) | Dumping angle at maximum height | 40 |
| (mm) | Maximum Dumping Distance from Frame | 790 |
| (°) | Rollback of Bucket on Ground | 30 |
| (°) | Rollback of Bucket at Full Height | 104 |
| (mm) | Front Turning Radius without Bucket | 1760 |
| (mm) | Front Turning Radius | 1296 |
| (mm) | Rear Turning Radius | 1098 |
YOU MAY BE INTEREST ALSO IN:

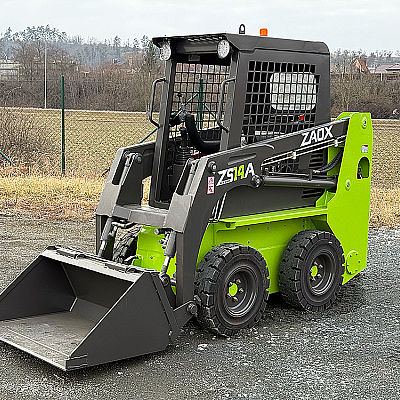

SKID LOADER ZS14A
$17,092.48
SKID LOADER ZS26A
$23,810.80

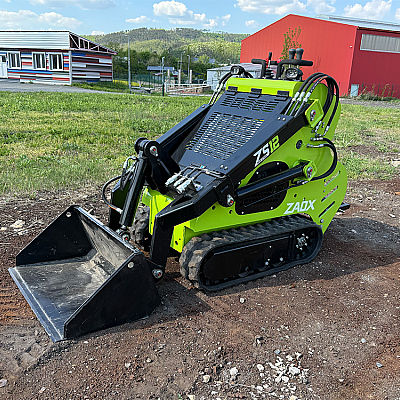

MINI SKID LOADER ZS12
