Factory Options Included
Included
Model
ZS14A
Status
AVAILABLE NOW
Location
Kraluv Dvur (CZ)
SKID LOADER ZS14A
Total Price (including factory option and selected accessory)$0.00
The Skid loader ZAOX ZS14A is a compact machine with an operating weight of about 1375 Kg, powered by a Euro V Kubota D1105 engine with low fuel consumption.
The machine is equipped with a bucket with a capacity of 0.2 m3, 1070 mm wide and reached the real dumping height of 2000 mm.
Compactness and ease of use, together with various attachments, make this vehicle an ideal companion for any type of company.
1070mm Bucket
Integrated Manual Quick Coupler
Hydraulic Controls
Hydraulic Transmission
3-Way Auxiliary Hydraulics
Price
Sticker Price : $20,110.00
Base Price : $17,100.00 (Discount Applied 15.0051%)
$17,100.00
(Sticker Price : $20,110.00 )
Discount is not applied on Factory Options and Accessories.
All prices are without VAT
Pay in other currency
View Full Configuration
One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.
Performance
SKID LOADER ZS14A
A compact skid loader is one of those machines that, even if you use it “only sometimes,” makes a real difference on a job site: moving material, leveling, loading, and cleaning up in minutes—exactly when you need it. The ZAOX ZS14A is built for that kind of fast, practical work where agility and simplicity matter more than theory. And with an attractive price, it’s worth considering even if you don’t think you need it every day—often it’s the machine that saves you time and effort at the right moment. In the end, it’s a small investment that makes the site cleaner and more productive.
SKID LOADER ZS14A

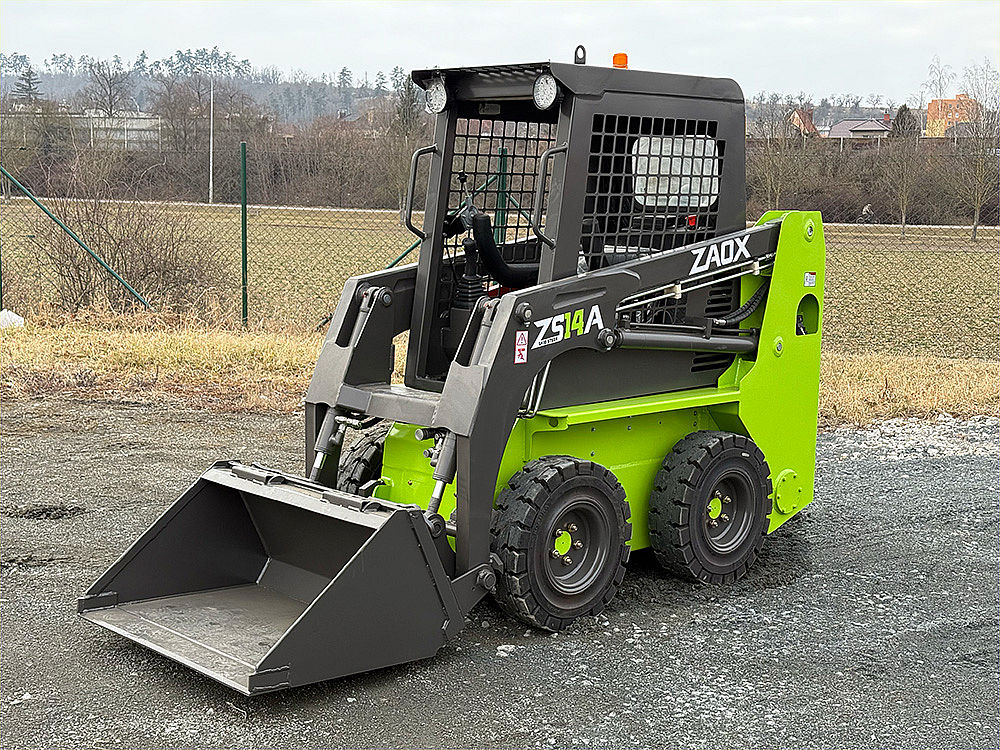

The ZS14A has a classic, functional design with an instantly recognizable old-school silhouette: compact frame, strong lift arms, and straight, no-nonsense lines. In this photo you can clearly see the protective cage and the very work-first setup, built to take daily abuse and stay practical. The contrast between ZAOX green and black adds a more modern, slightly “fashion” touch while keeping the overall look simple and honest. It doesn’t try to look futuristic—it tries to look reliable.
SKID LOADER ZS14A
The ZS14A reaches a real dumping height of 2000 mm, so loading and unloading stays clean even into higher containers and piles, without wasting time on extra maneuvers. It’s compact (920 mm wide) but with real working numbers: 1375 kg operating weight, 0.2 m³ bucket 1070 mm wide, and 380 kg operating load. The Kubota D1105 Euro V engine ( 18.2 kW / 24.7 HP ) delivers steady power with low fuel consumption. In short: small outside, built for productivity.
SKID LOADER ZS14A
The ZS14A cab is compact—tight space is normal on a skid loader—but it still stays comfortable where it matters. In this photo you can clearly see the centered driving position and the controls on both sides: everything is close and natural, so you work without awkward body moves. The result is more control in tight maneuvers and less fatigue in repeated cycles. It’s essential, practical comfort—built for long hours without losing precision.
Machine Specification
| (mm) | Overall Operating Height | 3400 |
|---|---|---|
| (mm) | Height to top of cab | 1813 |
| (mm) | Length Without Bucket | 2200 |
| (mm) | Overall Length with Bucket | 2950 |
| (mm) | Width | 920 |
| (mm) | Bucket Width | 1070 |
| (mm) | Height to bottom of flat bucket | 2446 |
| (mm) | Height to Bucket Hinge Pin | 2500 |
| (mm) | Wheelbase | 801 |
| (mm) | Ground Clearance | 145 |
| (°) | Angle of Departure | 20 |
| (mm) | Distance Between the Rear Axle and the Bumper | 910 |
| (mm) | Tread Width | 785 |
| (m³) | Bucket capacity | 0.2 |
|---|---|---|
| (km/h） | Max Speed | 9 |
| (L/min) | Rated flux | 50 |
| (L/min) | High Flow Flux | / |
| (Kg) | Operative weight | 1375 |
| Engine Model | Kubota D1105 | |
| (Kw(HP)/rpm) | Power/revolution speed | 18,2[24.7]/3000 |
| (L) | Fuel tank capacity | 28 |
| (kg) | Operating load | 380 |
| (mm) | Dumping height | 2000 |
|---|---|---|
| (°) | Dumping angle at maximum height | 40 |
| (mm) | Maximum Dumping Distance from Frame | 441 |
| (°) | Rollback of Bucket on Ground | 30 |
| (°) | Rollback of Bucket at Full Height | 103 |
| (mm) | Front Turning Radius without Bucket | 960 |
| (mm) | Front Turning Radius | 1660 |
| (mm) | Rear Turning Radius | 1253 |
| Machinery Size | ||
|---|---|---|
| (mm) | Overall Operating Height | 3400 |
| (mm) | Height to top of cab | 1813 |
| (mm) | Length Without Bucket | 2200 |
| (mm) | Overall Length with Bucket | 2950 |
| (mm) | Width | 920 |
| (mm) | Bucket Width | 1070 |
| (mm) | Height to bottom of flat bucket | 2446 |
| (mm) | Height to Bucket Hinge Pin | 2500 |
| (mm) | Wheelbase | 801 |
| (mm) | Ground Clearance | 145 |
| (°) | Angle of Departure | 20 |
| (mm) | Distance Between the Rear Axle and the Bumper | 910 |
| (mm) | Tread Width | 785 |
| Tech. Specifications | ||
| (m³) | Bucket capacity | 0.2 |
| (km/h） | Max Speed | 9 |
| (L/min) | Rated flux | 50 |
| (L/min) | High Flow Flux | / |
| (Kg) | Operative weight | 1375 |
| Engine Model | Kubota D1105 | |
| (Kw(HP)/rpm) | Power/revolution speed | 18,2[24.7]/3000 |
| (L) | Fuel tank capacity | 28 |
| (kg) | Operating load | 380 |
| Working Range | ||
| (mm) | Dumping height | 2000 |
| (°) | Dumping angle at maximum height | 40 |
| (mm) | Maximum Dumping Distance from Frame | 441 |
| (°) | Rollback of Bucket on Ground | 30 |
| (°) | Rollback of Bucket at Full Height | 103 |
| (mm) | Front Turning Radius without Bucket | 960 |
| (mm) | Front Turning Radius | 1660 |
| (mm) | Rear Turning Radius | 1253 |
