MINI EXCAVATOR ZA20A
Total Price (including factory option and selected accessory)$0.00

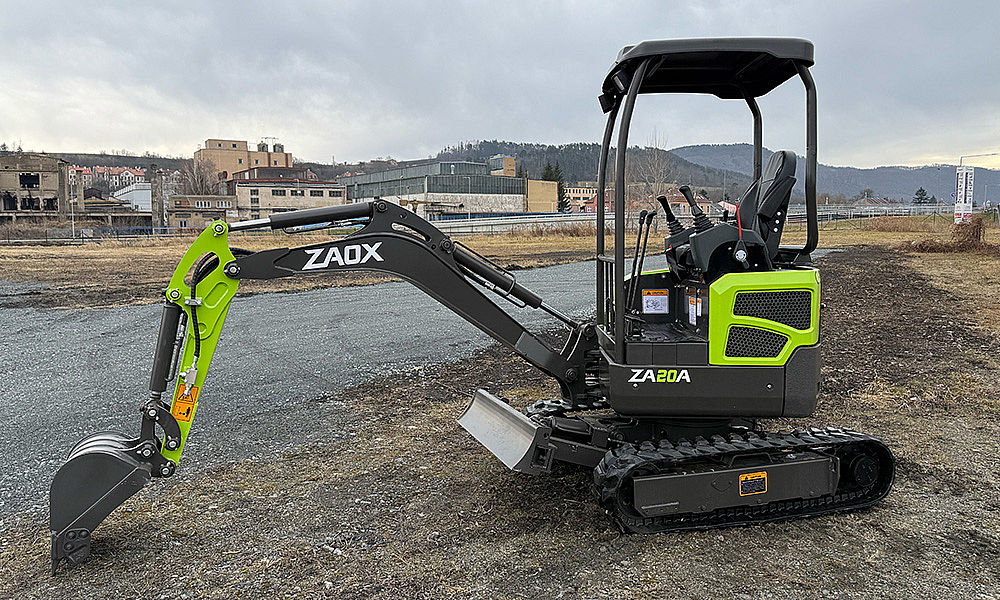

The ZA20A is an excellent hydraulic mini excavator with an operative weight of 1975 kg (around 2 tons). It is a no tail machine, with a max Digging Depth over 2,4 mt. The machine comes with a 435 mm Standard Bucket, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard. This machine is available only with canopy (the machine is so compact, there is no space to install a cab)
The ZA20A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Kubota D1105 engine
435mm bucket with teeth
Swing boom
Rubber Truck
H/L speed
Retractable rubber tracks
Auxiliary hydraulic Pipeline
Two year warranty
Price
Sticker Price : $22,190.00
Base Price : $20,910.00 (Discount Applied 14.7792%)
$18,920.00
(Sticker Price : $22,190.00 )
Discount is not applied on Factory Options and Accessories.
All prices are without VAT
Pay in other currency
View Full Configuration
One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.
Performance
MINI EXCAVATOR ZA20A
The ZA20A has a compact but “solid” design, with well-balanced proportions that make it look stable and job-ready. Lines are clean and modern, with a tidy silhouette where the boom, upper frame, and undercarriage are easy to read at a glance. The canopy keeps the profile light and practical—ideal when you want visibility and quick access on site. It’s a straightforward look: good-looking, but fully aligned with a roughly 2-ton machine built for daily work.
MINI EXCAVATOR ZA20A
La postazione comandi dello ZA20A è impostata in modo semplice e “da lavoro”: pulita, ordinata e immediata da capire. Le leve sono dove devono essere e i comandi principali sono a portata di mano, così non perdi tempo a cercare funzioni mentre stai manovrando. Il layout ti aiuta a mantenere movimenti fluidi e precisi, soprattutto quando alterni scavo, rotazione e scarico in sequenza. È una configurazione pensata per lavorare tante ore con più controllo e meno fatica.
MINI EXCAVATOR ZA20A
When digging, the ZA20A feels stable and precise—compact, yet well-planted to keep your work clean even on uneven ground. The Load Sensing hydraulic system makes movements smooth and progressive, so you can meter the boom and bucket without jerky reactions, especially during finishing. In repeated dig-and-dump cycles, it stays fluid and predictable with a steady rhythm. It’s the kind of control that helps you work faster and more accurately.
MINI EXCAVATOR ZA20A
The ZA20A’s variable undercarriage is built for real-world access and stability. You can retract it down to 990 mm to fit through tight entrances and work close to walls or fences without wasting time. When you need more footing for digging or lifting, extend it out to 1300 mm and the machine immediately feels more planted. It’s a simple feature that boosts control, safety, and productivity on site.
Machine Specification
| (mm) | Total Length | 3555 |
|---|---|---|
| (mm) | Total Width | 990/1300 |
| (mm) | Track Width | 230 |
| (kg) | Machine Weight (with all fluids) | 1900 |
| (mm) | Canopy Height | 2290 |
| (mm) | Axle Base | 1230 |
| (mm) | Wheel (track) Distance | 760 |
| (mm) | Minimum Ground Clearance | 150 |
| (mm) | Tail Swing Radius | 650 |
| (㎡/mm) | Standard Bucket Capacity/Length | 0.07/435 |
|---|---|---|
| (rmp) | Swing Speed | 1-9 |
| (°) | Gradeability | 35 |
| (KN) | Max. Bucket Digging Force | 18 |
| (KN) | Max. Arm Digging Force | 11 |
| Engine Model | KUBOTA D1105 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 14.2[19.4]/2000 |
| kPa (kgf/cm²) | Ground pressure (without driver) | 63.79 (0.65) |
| (MPa) | System Pressure | 21.5 |
| (L) | Fuel Tank Capacity | 17 |
| (L) | Hydraulic Circuit Capacity | 30 |
| (L) | Cooling Circuit Capacity | 9 |
| (L) | Engine Oil Capacity | 4.2 |
| (m³) | Bucket capacity | 0.07 |
| (mm) | Max. Digging Height | 3570 |
|---|---|---|
| (mm) | Max. Dumping Height | 2440 |
| (mm) | Max. Digging Depth | 2400 |
| (mm) | Max. Vertical Digging Depth | 2025 |
| (mm) | Max. Digging Radius | 4040 |
| (mm) | Max. Swing Radius | 1610 |
| (mm) | MAx. Dozer Blade Lifting Distance | 240 |
| (mm) | MAx. Dozer Blade Cutting Distance | 270 |
| Machinery Size | ||
|---|---|---|
| (mm) | Total Length | 3555 |
| (mm) | Total Width | 990/1300 |
| (mm) | Track Width | 230 |
| (kg) | Machine Weight (with all fluids) | 1900 |
| (mm) | Canopy Height | 2290 |
| (mm) | Axle Base | 1230 |
| (mm) | Wheel (track) Distance | 760 |
| (mm) | Minimum Ground Clearance | 150 |
| (mm) | Tail Swing Radius | 650 |
| Tech. Specifications | ||
| (㎡/mm) | Standard Bucket Capacity/Length | 0.07/435 |
| (rmp) | Swing Speed | 1-9 |
| (°) | Gradeability | 35 |
| (KN) | Max. Bucket Digging Force | 18 |
| (KN) | Max. Arm Digging Force | 11 |
| Engine Model | KUBOTA D1105 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 14.2[19.4]/2000 |
| kPa (kgf/cm²) | Ground pressure (without driver) | 63.79 (0.65) |
| (MPa) | System Pressure | 21.5 |
| (L) | Fuel Tank Capacity | 17 |
| (L) | Hydraulic Circuit Capacity | 30 |
| (L) | Cooling Circuit Capacity | 9 |
| (L) | Engine Oil Capacity | 4.2 |
| (m³) | Bucket capacity | 0.07 |
| Working Range | ||
| (mm) | Max. Digging Height | 3570 |
| (mm) | Max. Dumping Height | 2440 |
| (mm) | Max. Digging Depth | 2400 |
| (mm) | Max. Vertical Digging Depth | 2025 |
| (mm) | Max. Digging Radius | 4040 |
| (mm) | Max. Swing Radius | 1610 |
| (mm) | MAx. Dozer Blade Lifting Distance | 240 |
| (mm) | MAx. Dozer Blade Cutting Distance | 270 |
