Factory Options Included
Included
Model
ZRV.175
Status
AVAILABLE NOW
Location
Kraluv Dvur (CZ)

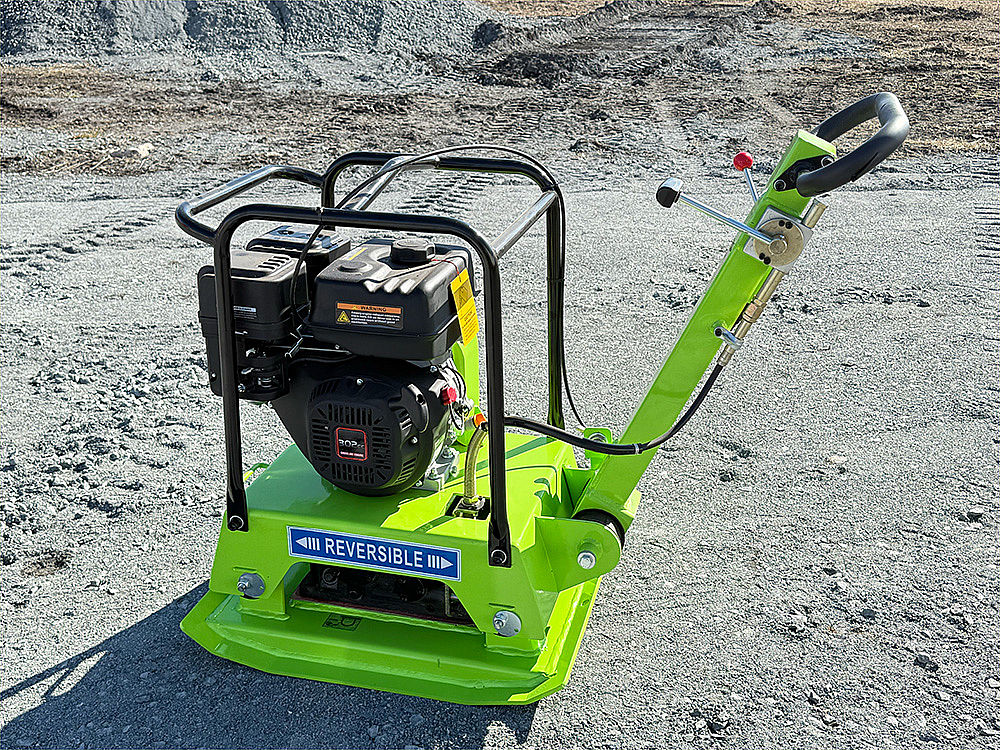

Vibratory Plate ZRV.175
Total Price (including factory option and selected accessory)$0.00
The Vibratory Plate Compactor ZAOX model ZRV.175 is medium size machinery designed for heavy use on granular soils, hot or cold asphalt, and paving blocks. This machinery is superb for trenches, road construction, backfill, and foundation work. It is also suitable for compacting at the edges of road, abutment channel, groove in narrow trenches.
The Vibratory Plate Compactors ZAOX model ZRV.175 is powered by a reliable Euro V Loncin G300 engine, with high quality vibratory component and a very solid structure.
With a the weight 175 kg, this machinery is a powerful solution when high productivity is needed.
Loncin G300 engine
Walk Backward and Forward
Price
Sticker Price : $2,140.00
Base Price : $1,430.00 (Discount Applied 33.5514%)
$1,430.00
(Sticker Price : $2,140.00 )
Discount is not applied on Factory Options and Accessories.
All prices are without VAT
Pay in other currency
View Full Configuration
One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.
Performance
Machine Specification
| Engine | Loncin G300 | |
|---|---|---|
| Oil when temperature from 4°C to 50°C | SAE 30 | |
| Oil when temperature from -9°C to 4°C | SAE 20 | |
| Oil when temperature under -9°C | SAE 10W-30 | |
| (HP) | Power | 5.4 |
| (mm) | Working Area | 500x690 |
| Walking | Reversible | |
| (KN) | Vibrating Force | 30 |
| (HZ) | Frequency | 70 |
| (%) | Gradeability | 25 |
| (kg) | Weight | 175 |
| Tech. Specifications | ||
|---|---|---|
| Engine | Loncin G300 | |
| Oil when temperature from 4°C to 50°C | SAE 30 | |
| Oil when temperature from -9°C to 4°C | SAE 20 | |
| Oil when temperature under -9°C | SAE 10W-30 | |
| (HP) | Power | 5.4 |
| (mm) | Working Area | 500x690 |
| Walking | Reversible | |
| (KN) | Vibrating Force | 30 |
| (HZ) | Frequency | 70 |
| (%) | Gradeability | 25 |
| (kg) | Weight | 175 |
