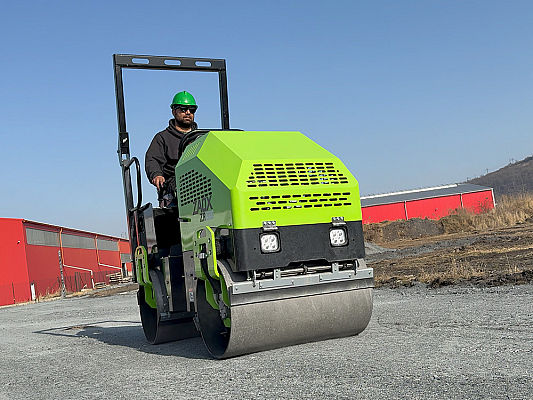

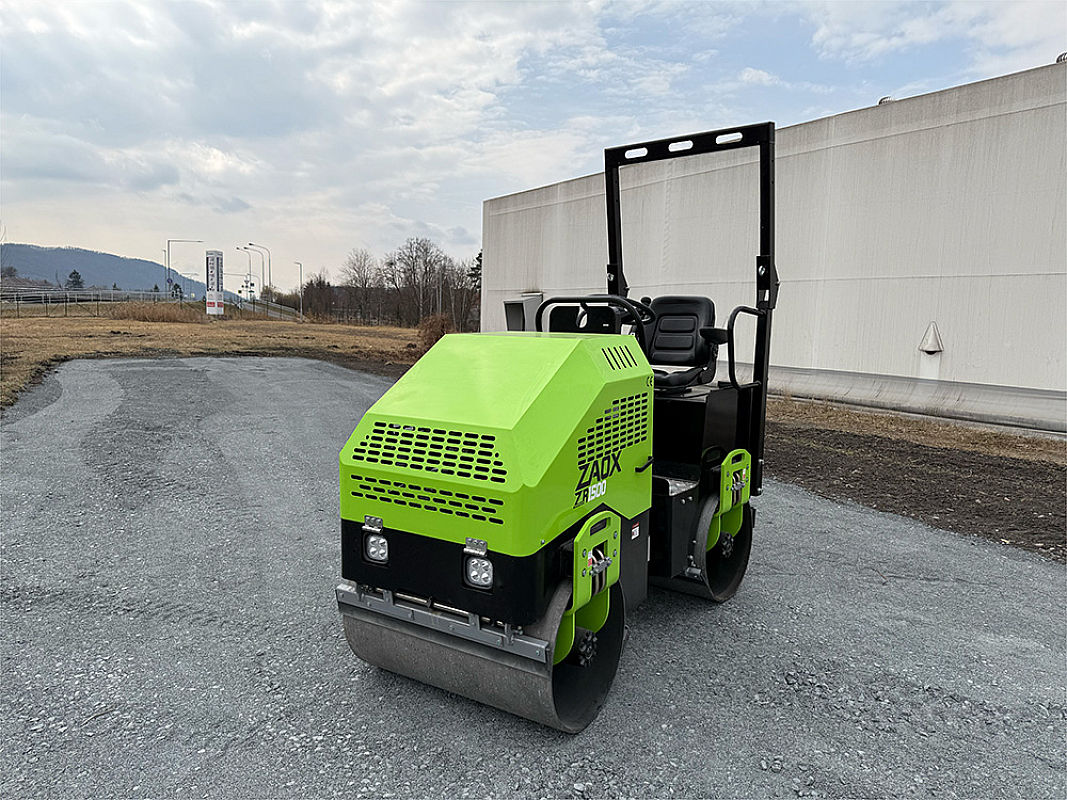

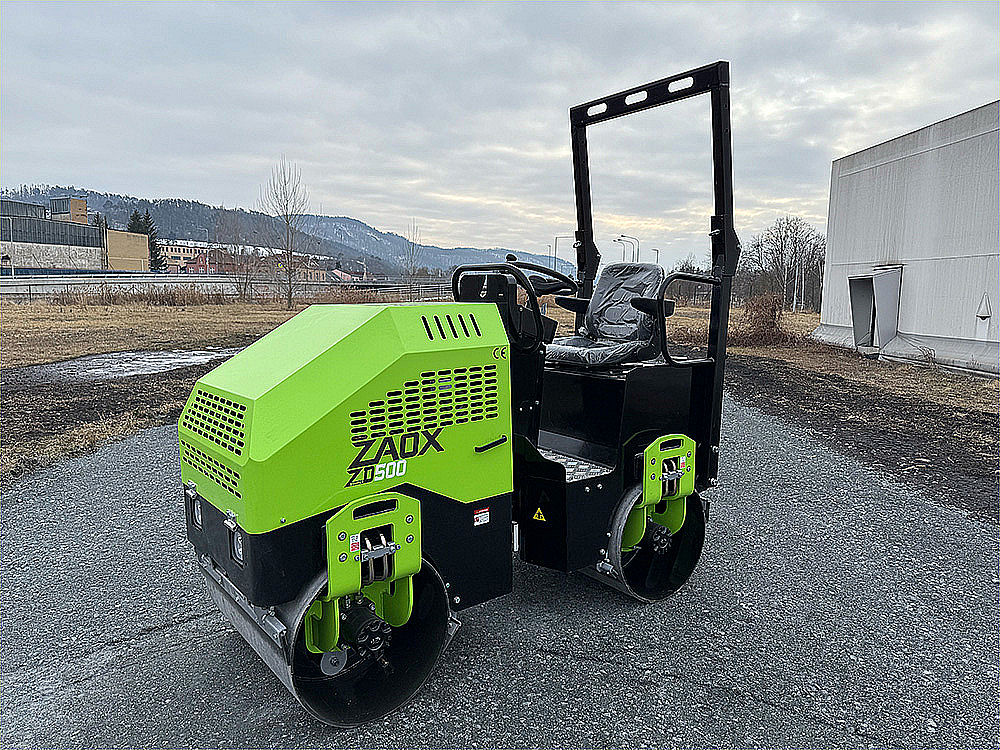

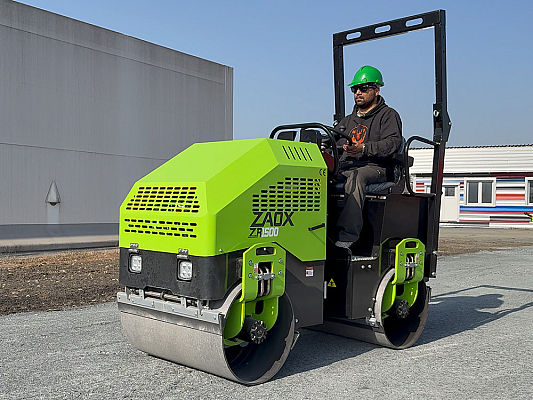

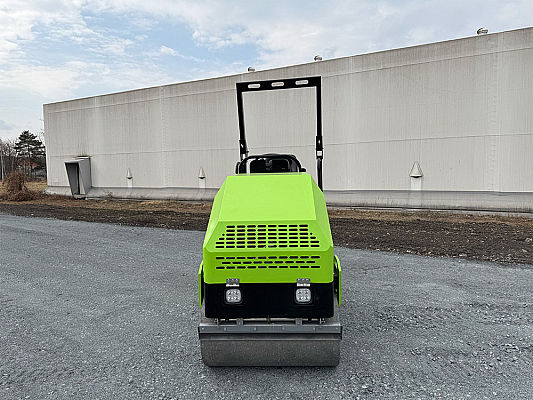

The Road Roller ZAOX model ZR1500 is a comfortable and very reliable machinery with an operating weight of 1.5 tons. It is powered by a low consumption Euro V Kubota D1105 engine, with hydraulic stearing and hydraulic transmission.
It has a huge 100L water tank and hydraulic vibration system.
The machinery works smoot on any terrain (gravel, sand, asphalt) with a high productivity thank to en exiting force up to 30KN and a steel wheels with a diameter of 560mm at a width of 900 mm (front axle) and 1000 mm (rear axle)
The Road Roller ZAOX model ZR1500 is a valid option in all places where it is necessary to compact the soil, even for heavy-duty work.
Discount is not applied on Factory Options and Accessories.
All prices are without VAT
| (kg) | Machine Weight (with all fluids) | 1425 |
|---|---|---|
| (mm) | Length | 2325 |
| (mm) | Width | 985 |
| (mm) | Height | 2125 |
| (°) | Gradeability | 30 |
|---|---|---|
| Engine Model | Kubota D1105 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 18.2[24.4]/3000 |
| (Kg) | Operative weight | 1500 |
| Driving Mode | Hydraulic | |
| (km/h) | Walk Speed | 0-8 |
| Vibrating Control | Hydraulic | |
| (N/cm) | Static Linear Load | 55/70 |
| (mm) | Nominal Amplitude | 0.6 |
| (HZ) | Vibration Frequency | 65 |
| (KN) | Exiting Force | 30 |
| (L) | Water Tank | 100 |
| (L) | Hydraulic Oil Tank Capacity | 60 |
| (mm) | Steel Wheel Size (Front / Rear) | [fi]560X900 / [fi]560X1000 |
| Machinery Size | ||
|---|---|---|
| (kg) | Machine Weight (with all fluids) | 1425 |
| (mm) | Length | 2325 |
| (mm) | Width | 985 |
| (mm) | Height | 2125 |
| Tech. Specifications | ||
| (°) | Gradeability | 30 |
| Engine Model | Kubota D1105 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 18.2[24.4]/3000 |
| (Kg) | Operative weight | 1500 |
| Driving Mode | Hydraulic | |
| (km/h) | Walk Speed | 0-8 |
| Vibrating Control | Hydraulic | |
| (N/cm) | Static Linear Load | 55/70 |
| (mm) | Nominal Amplitude | 0.6 |
| (HZ) | Vibration Frequency | 65 |
| (KN) | Exiting Force | 30 |
| (L) | Water Tank | 100 |
| (L) | Hydraulic Oil Tank Capacity | 60 |
| (mm) | Steel Wheel Size (Front / Rear) | [fi]560X900 / [fi]560X1000 |
