Factory Options Included

Included

Model

ZA16A

Status

AVAILABLE NOW

Location

Kraluv Dvur (CZ)
MINI EXCAVATOR ZA16A
Total Price (including factory option and selected accessory)

$0.00

The ZA16A is an excellent hydraulic mini excavator with an operative weight of 1605 kg (around 1.6 tons). It is a no tail machine, with a max Digging Depth over 2 mt. The machine comes with a Standard Bucket large 38 cm, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

The ZA16A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Componentsfor a precise control of the execution elements, good controllability and high working efficiency.

The machine has plenty of power and an enviable quality/price ratio.

Kubota D722 engine

380mm bucket with teeth

Swing boom

Rubber Truck

H/L speed

Auxiliary hydraulic Pipeline

Two year warranty

Price

Total Price (including factory option and selected accessory)
$15,303.20 (≈$15,303.20)
Serial Number :JH78******
Sticker Price : $17,490.00
Base Price : $15,130.00 (Discount Applied 13.5094%)


$15,130.00

Reserved
Discount : 13.5094 % OFF
(Sticker Price : $17,490.00 )

Discount is not applied on Factory Options and Accessories.
All prices are without VAT

Pay in other currency
View Full Configuration

Performance

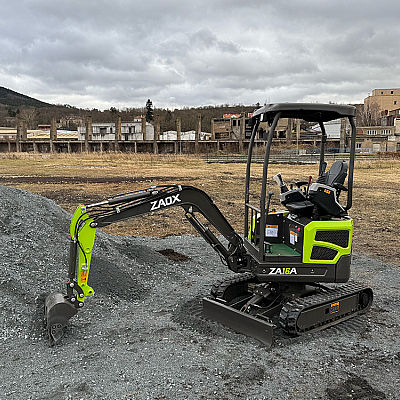

MINI EXCAVATOR ZA16A

The ZA16A (canopy version) features a clean, well-proportioned design with sharp lines that give it a modern, work-ready look. The structure is compact and tidy, with balanced volumes that make everything feel intentionally placed—no excess, no clutter. The contrast between the undercarriage, upper frame, and boom creates a precise silhouette that’s easy to recognize from a distance. It’s practical styling: good-looking, but fully aligned with a machine built to work.

MINI EXCAVATOR ZA16A

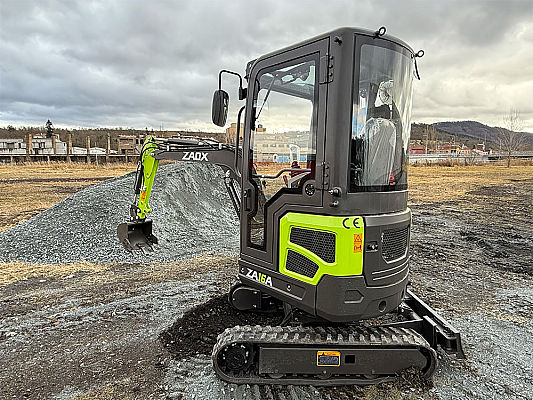

The ZA16A cab version keeps the same compact proportions, but adds a more premium, professional presence. The cab integrates cleanly into the machine’s lines—tidy surfaces, sharp profiles, and a solid look that immediately suggests protection and comfort. The contrast between glass, undercarriage, and boom creates a modern, recognizable silhouette without losing its work-first identity. It’s a design that looks right in the yard and makes even more sense on the jobsite.

MINI EXCAVATOR ZA16A

The retractable undercarriage gives you two machines in one: narrow for access, wide for stability. Here the track width adjusts from 990 to 1300 mm—extend it and you increase your footprint, immediately gaining more control while digging, swinging, and loading, especially on gravel or softer ground. The result is less rocking, better precision, and more confidence near slopes or trench edges.

MINI EXCAVATOR ZA16A

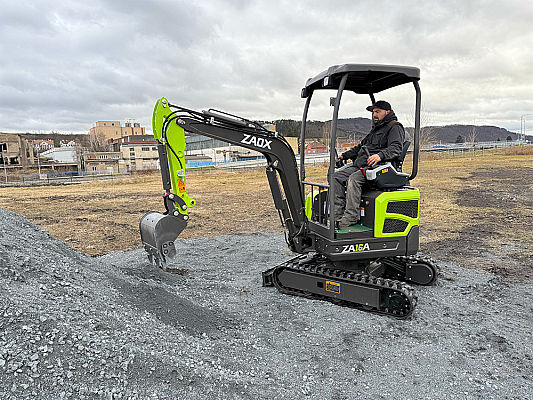

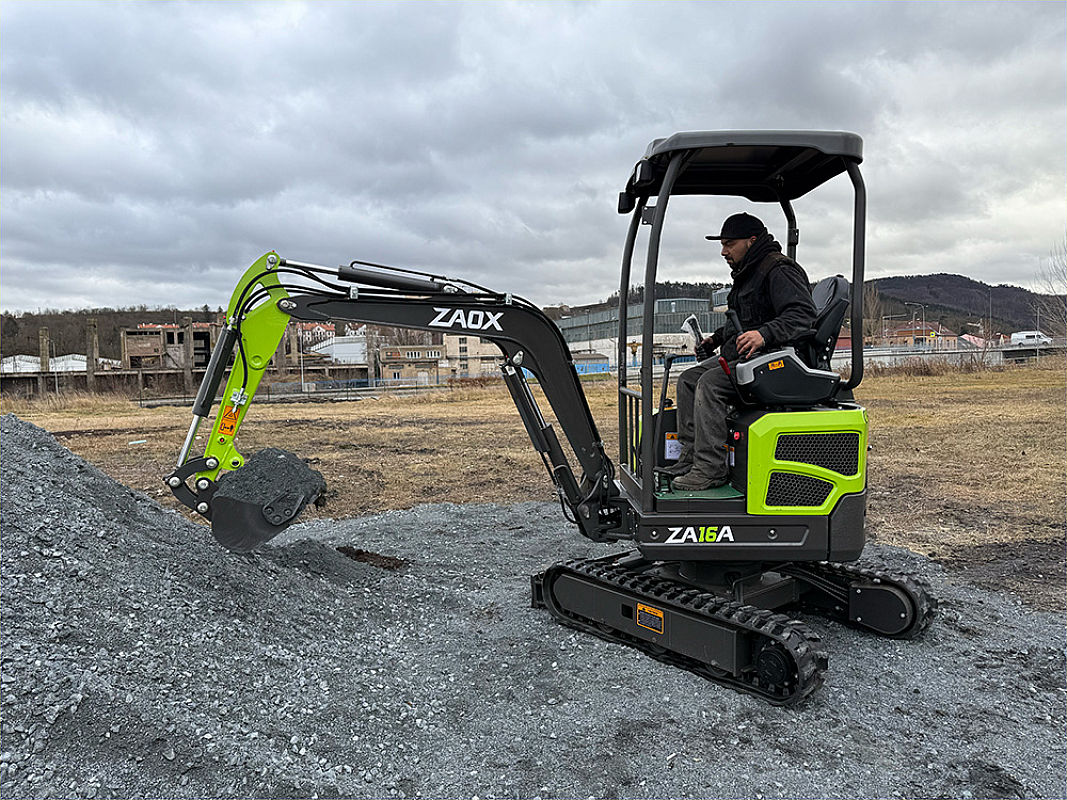

When digging, the ZA16A stays compact but well-planted, with a stable stance that helps you work cleanly even on uneven ground. The boom and arm move in a smooth, controllable way, so you can load and place material without jerky motions or lost precision. It feels agile to reposition, yet solid the moment you bite into the ground. Built to keep a steady rhythm: dig, swing, dump, and go again without wasting time.

MINI EXCAVATOR ZA16A

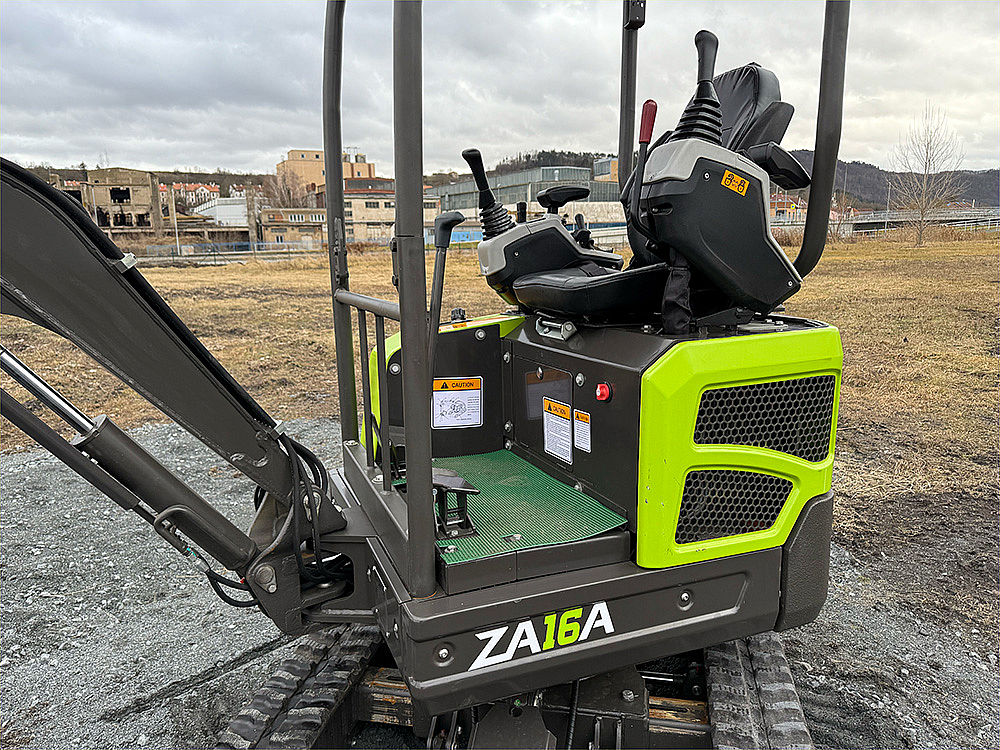

Inside the cab, the ZA16A feels more focused and “clean” to operate—everything is compact, tidy, and easy to reach. Visibility is wide, helping you track the boom and bucket without constantly shifting your position, especially while digging. Controls are set up to feel natural and progressive, so you keep precision even during finishing work. It’s an operator space built for long hours with less stress and more control.

Machine Specification

Specification 2 Image
(mm) Total Length 3335
(mm) Total Width 990/1300
(mm) Track Width 200
(kg) Machine Weight (with all fluids) 1530
(mm) Canopy Height 2270
(mm) Axle Base 1215
(mm) Wheel (track) Distance 790
(mm) Minimum Ground Clearance 153
(mm) Tail Swing Radius 655

(㎡/mm) Standard Bucket Capacity/Length 0.025/380
(rmp) Swing Speed 1-13
(°) Gradeability 30
(KN) Max. Bucket Digging Force 9
(KN) Max. Arm Digging Force 5.5
Engine Model KUBOTA D722
(Kw(HP)/rpm) Power/Revolution speed 10.2[13.8]/2500
(MPa) System Pressure 17
(L) Fuel Tank Capacity 14.5
(L) Hydraulic Circuit Capacity 21
(L) Cooling Circuit Capacity 5
(L) Engine Oil Capacity 2.5
(m³) Bucket capacity 0.025

Specification 2 Image
(mm) Max. Digging Height 2961
(mm) Max. Dumping Height 2083
(mm) Max. Digging Depth 1953
(mm) Max. Vertical Digging Depth 1859
(mm) Max. Digging Radius 3519
(mm) Max. Swing Radius -
(mm) MAx. Dozer Blade Lifting Distance 224
(mm) MAx. Dozer Blade Cutting Distance 237
Inquiry

Happy To Answer Your Questions


Kubota D722 engine 380mm bucket with teeth Swing boom Rubber Truck H/L speed Auxiliary hydraulic Pipeline Two year warranty

  • Extended Warranty

    It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.

    3 years or 3000 hours: +$460.00
    Select Click to Deselect
    4 years or 4000 hours: +$770.00
    Select Click to Deselect
  • Machinery
    Accessories
    Complete cabin with heating for ZA20A & ZA20B : +$2,130.00
    Select Click to Deselect

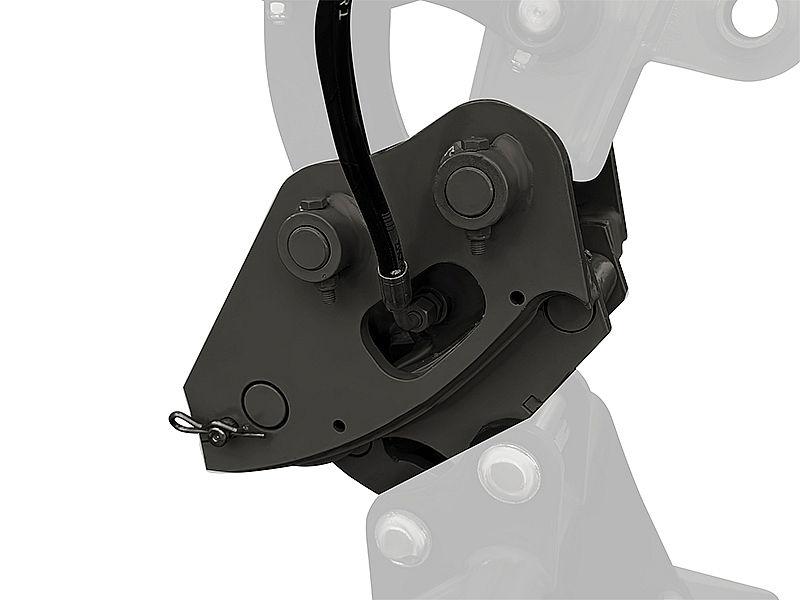

    Hydraulic Quick Hitch : +$440.00
    Select Click to Deselect
    Mechanical quick hitch : +$150.00
    Select Click to Deselect
    200 mm Bucket with Teeth : +$170.00
    Select Click to Deselect
    260 mm Bucket with teeth : +$200.00
    Select Click to Deselect
    800 mm Clean Bucket : +$270.00
    Select Click to Deselect

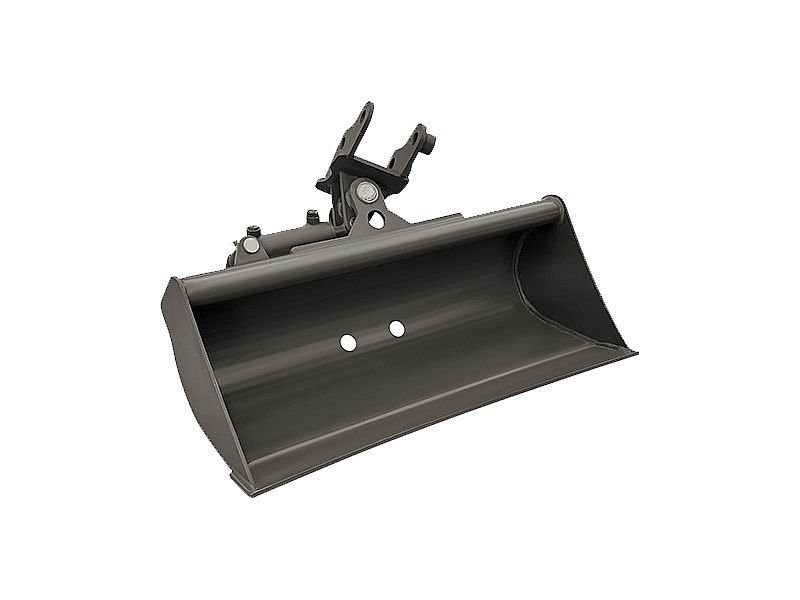

    800 mm Hydraulic Tilt Bucket : +$550.00
    Select Click to Deselect
    Couple Hydraulic Hoses for tilt bucket (ZA10-16) : +$80.00
    Select Click to Deselect
    Hydraulic Quick Coupler 3/8 for Tilt Bucket Hoses : +$190.00
    Select Click to Deselect
    Flow regulator valve (2 two pieces) for Tilt Bucket : +$80.00
    Select Click to Deselect
    Hydraulic Auger 200 mm : +$880.00
    Select Click to Deselect
    Couple Hydraulic Hoses for Auger (ZA10-16) : +$80.00
    Select Click to Deselect
    Hydraulic Quick Coupler 3/8 for Auger hoses : +$190.00
    Select Click to Deselect

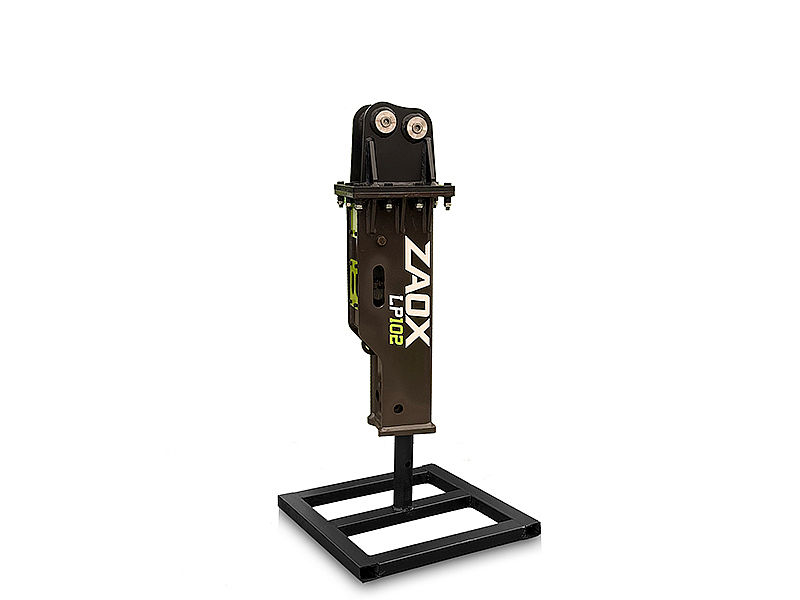

    Hydraulic Breaker LP102 : +$1,590.00
    Select Click to Deselect
    Couple Hydraulic Hoses for Breaker (ZA10-16) : +$80.00
    Select Click to Deselect
    Hydraulic Quick Coupler 3/8 for Breaker hoses : +$190.00
    Select Click to Deselect
    Moil/Pyramid Tool 40 mm : +$60.00
    Select Click to Deselect
    Cone Tool 40 mm : +$60.00
    Select Click to Deselect
    Chisel Tool 40 mm : +$60.00
    Select Click to Deselect
    Rotary Screening Bucket ZM1225 : +$3,880.00
    Select Click to Deselect
    Couple Hydraulic Hoses for rotary screening bucket (ZA10-16) : +$80.00
    Select Click to Deselect
    Hydraulic Quick Coupler 3/8 for Screening Bucket hoses : +$190.00
    Select Click to Deselect

The ZA16A is an excellent hydraulic mini excavator with an operative weight of 1605 kg (around 1.6 tons). It is a no tail machine, with a max Digging Depth over 2 mt. The machine comes with a Standard Bucket large 38 cm, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

The ZA16A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Componentsfor a precise control of the execution elements, good controllability and high working efficiency.

The machine has plenty of power and an enviable quality/price ratio.

Specification 2 Image
Machinery Size
(mm) Total Length 3335
(mm) Total Width 990/1300
(mm) Track Width 200
(kg) Machine Weight (with all fluids) 1530
(mm) Canopy Height 2270
(mm) Axle Base 1215
(mm) Wheel (track) Distance 790
(mm) Minimum Ground Clearance 153
(mm) Tail Swing Radius 655
Tech. Specifications
(㎡/mm) Standard Bucket Capacity/Length 0.025/380
(rmp) Swing Speed 1-13
(°) Gradeability 30
(KN) Max. Bucket Digging Force 9
(KN) Max. Arm Digging Force 5.5
Engine Model KUBOTA D722
(Kw(HP)/rpm) Power/Revolution speed 10.2[13.8]/2500
(MPa) System Pressure 17
(L) Fuel Tank Capacity 14.5
(L) Hydraulic Circuit Capacity 21
(L) Cooling Circuit Capacity 5
(L) Engine Oil Capacity 2.5
(m³) Bucket capacity 0.025
Working Range
(mm) Max. Digging Height 2961
(mm) Max. Dumping Height 2083
(mm) Max. Digging Depth 1953
(mm) Max. Vertical Digging Depth 1859
(mm) Max. Digging Radius 3519
(mm) Max. Swing Radius -
(mm) MAx. Dozer Blade Lifting Distance 224
(mm) MAx. Dozer Blade Cutting Distance 237


YOU MAY BE INTEREST ALSO IN:

AVAILABLE NOW

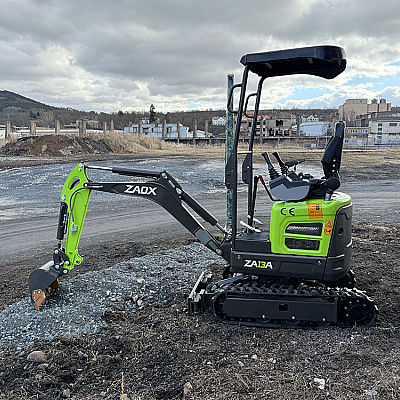

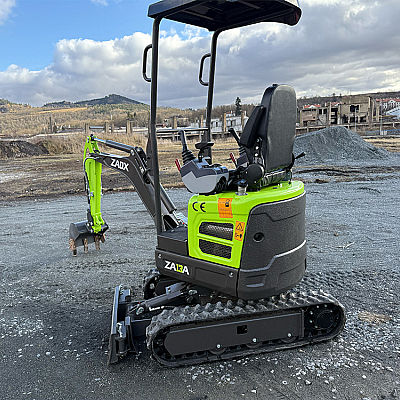

MINI EXCAVATOR ZA13A
$14,174.40
AVAILABLE NOW
MINI EXCAVATOR ZA13A
$14,174.40
AVAILABLE NOW

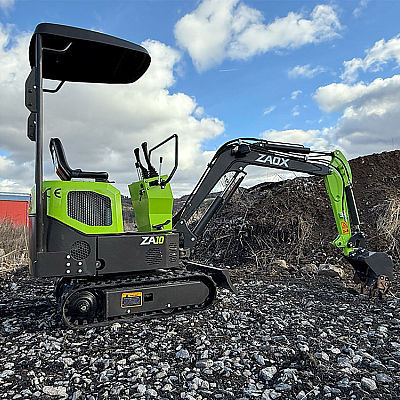

MINI EXCAVATOR ZA10
