| SPECIFICATIONS | |||

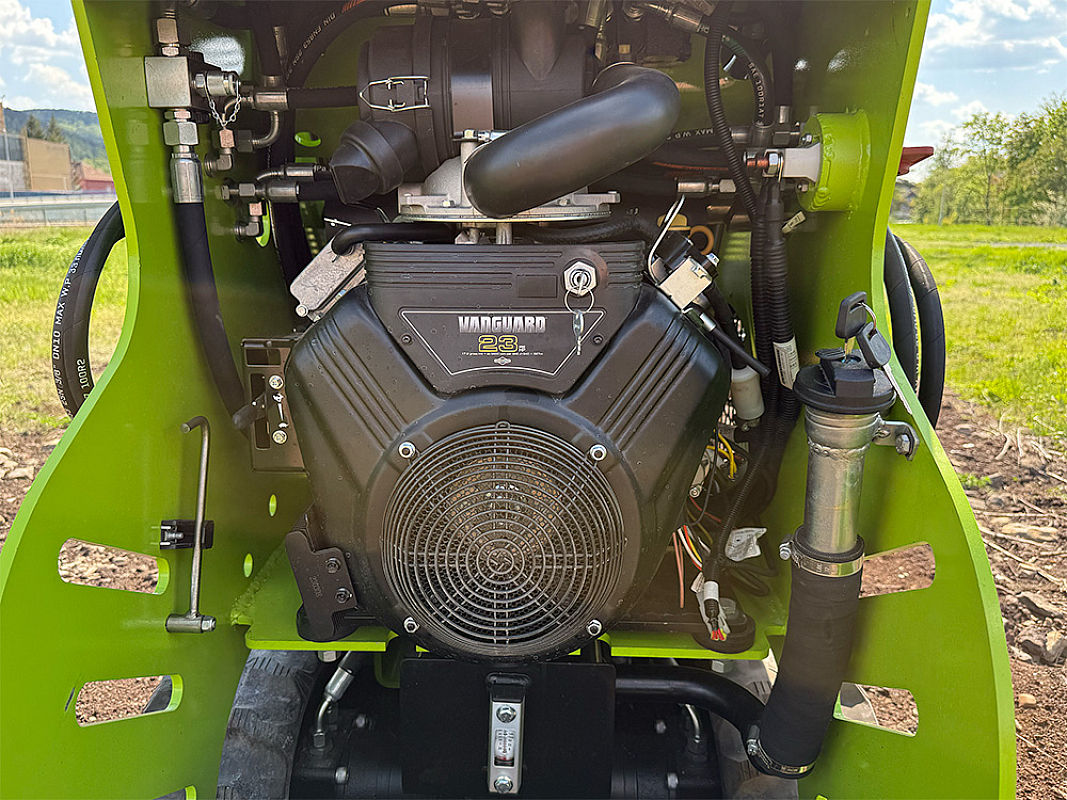

| Engine | Brand |
Briggs&Stratton |
|
| Model | 3867 (Gasoline) | ||
| Power | 17.2KW/23HP | ||
| Rotating speed | >3600 | ||
| Hydraulic Noise (Db) | ≤ 90 | ||
| Hydraulic System | Hydraulic pressure（Mpa） | 20 | |
| Cycle time（s） | Raise 4.1, Dump 1.9, Lower 3.65 | ||
| Performance Parameters | Load weight (kg) | 240 | |
| Bucket capacity (m2) | 0.12 | ||
| Max lifting power (Kg) | 850 | ||
| Speed (Km/h) | 6 | ||
| Operative Weight (Kg) | 1185 | ||
| WORKING RANGE | |||
| (mm) | Max working height | 2178 | |
| (mm) | Max pin height | 1890 | |
| (mm) | Max dump height | 1395 | |
| (mm) | The highest point discharge distance | 620 | |
| (°) | Bucket swing angle | 79 | |
| (°) | Bucket unloading angle | 36 | |
| (°) | Opening-closing angle | 14 | |
| (°) | Angle of departure | 25 | |
| MACHINE SIZE | |||
| (mm) | Total height | 1374 | |
| (mm) | The height from the ground | 90 | |
| (mm) | Wheelbase | 705 | |
| (mm) | No bucket length | 1900 | |
| (mm) | Total width | 830 | |
| (mm) | Bucket width | 835 | |
| (mm) | Total length（L) with bucket | 2400 | |
| (mm) | Turning radius | 1890 | |
