ZA10

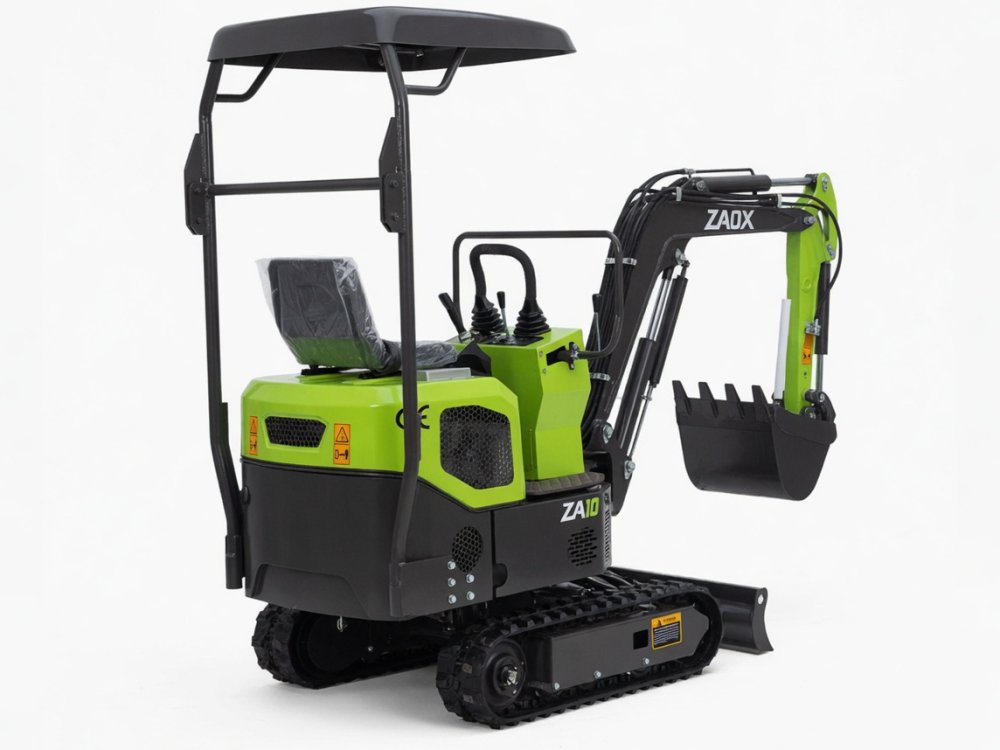

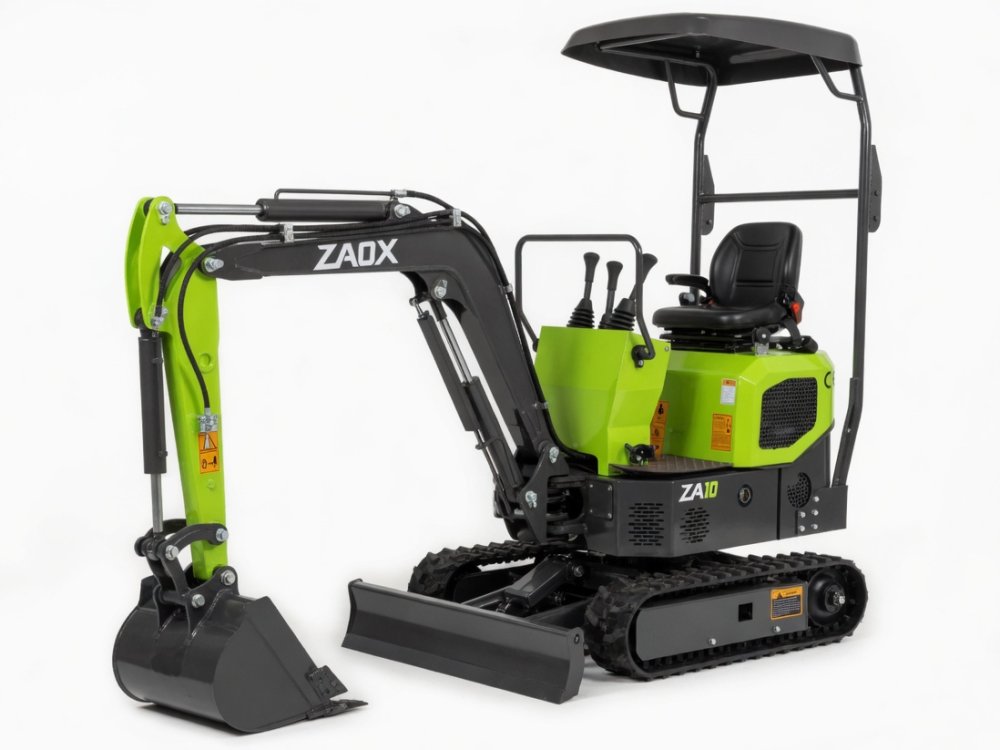

MINI EXCAVATOR ZA10
WEIGHT: 945 KG
MAX. DIGGING DEPTH: 1715 mm

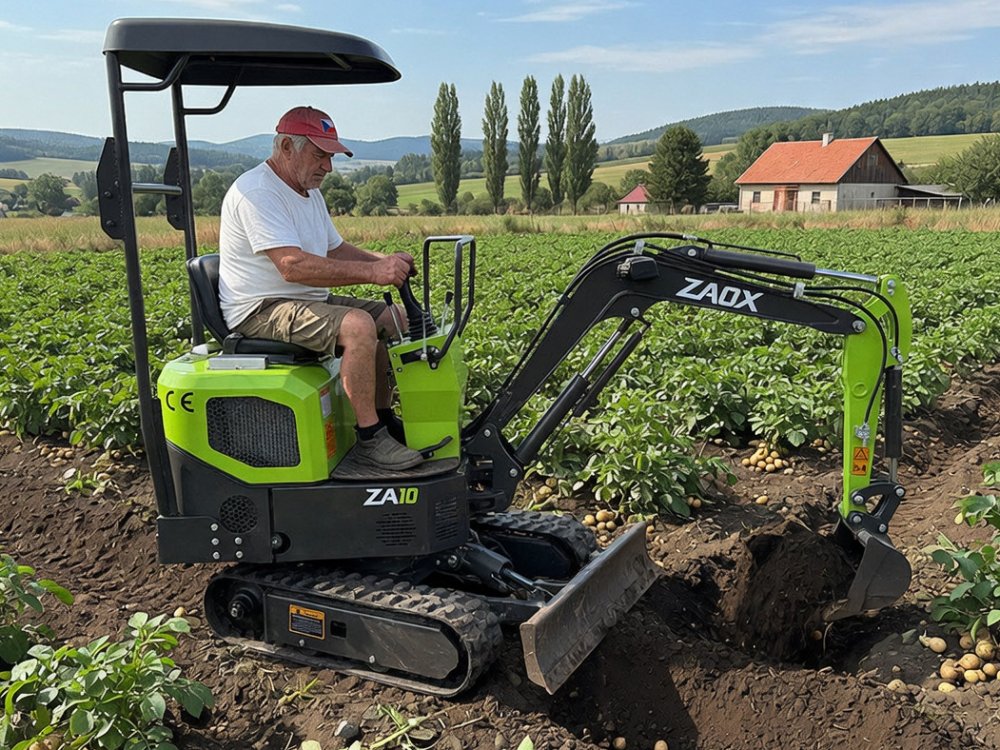

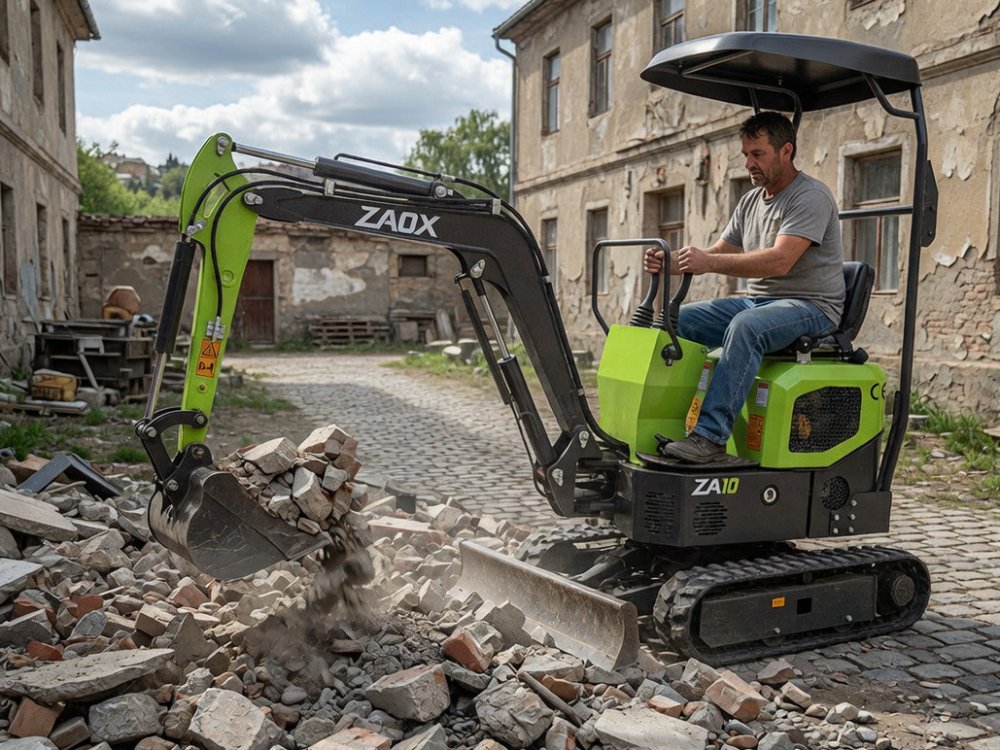

The ZA10 is a cost-effective hydraulic mini excavator with an operative weight of 945 kg (around 1 ton), especially suitable for agricultural work. The machine has a max digging depth of over 1.7 m and comes with a standard bucket of 38 cm and an Auxiliary Hydraulic Pipeline (to power, for example, a hydraulic hammer) as standard.

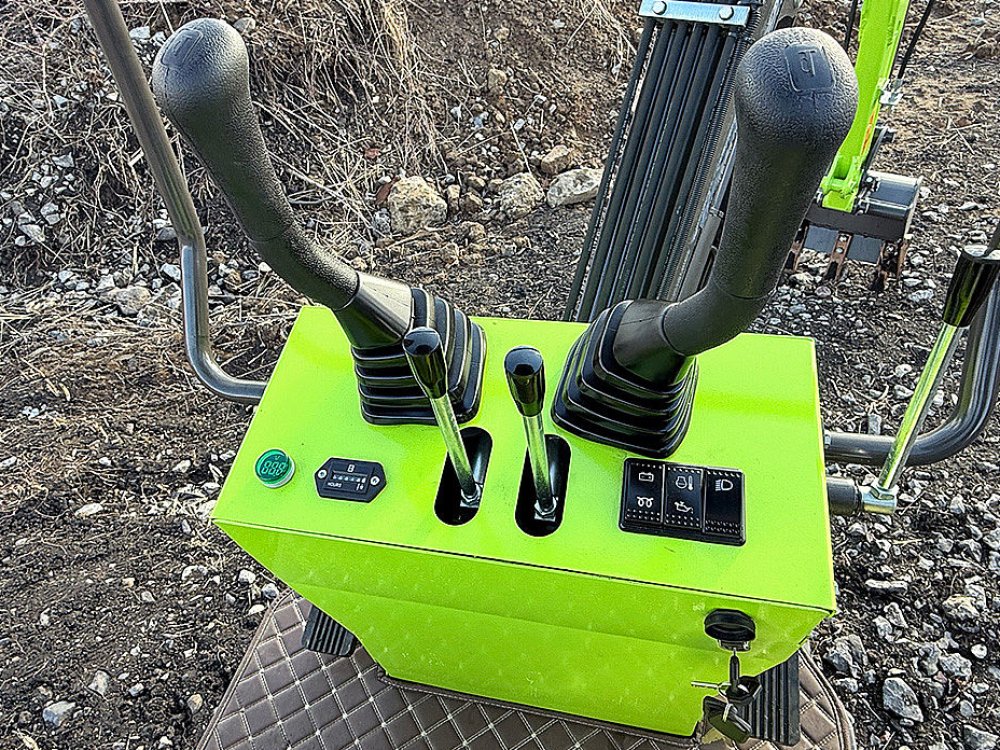

The ZA10 comes as standard with a reliable, low-consumption KOOP KD192FB engine, with the option to upgrade to a Kubota Z428 Euro V engine for those who require it. Combined with quality hydraulic components, it delivers dependable performance. The mini excavator's controllability is ensured by a simple lever system that guarantees a high degree of precision.
The machine offers plenty of power and an excellent value-for-money ratio.
The ZA10 comes as standard with a reliable, low-consumption KOOP KD192FB engine, with the option to upgrade to a Kubota Z428 Euro V engine for those who require it. Combined with quality hydraulic components, it delivers dependable performance. The mini excavator's controllability is ensured by a simple lever system that guarantees a high degree of precision.
The machine offers plenty of power and an excellent value-for-money ratio.
FACTORY OPTIONS

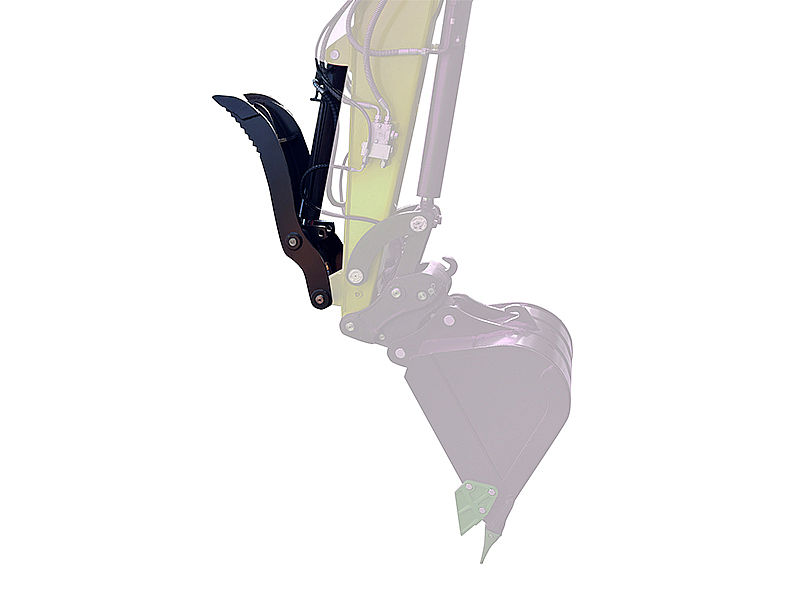

Hydraulic Thumb
Kubota 482 engine
AVAILABLE ACCESSORIES

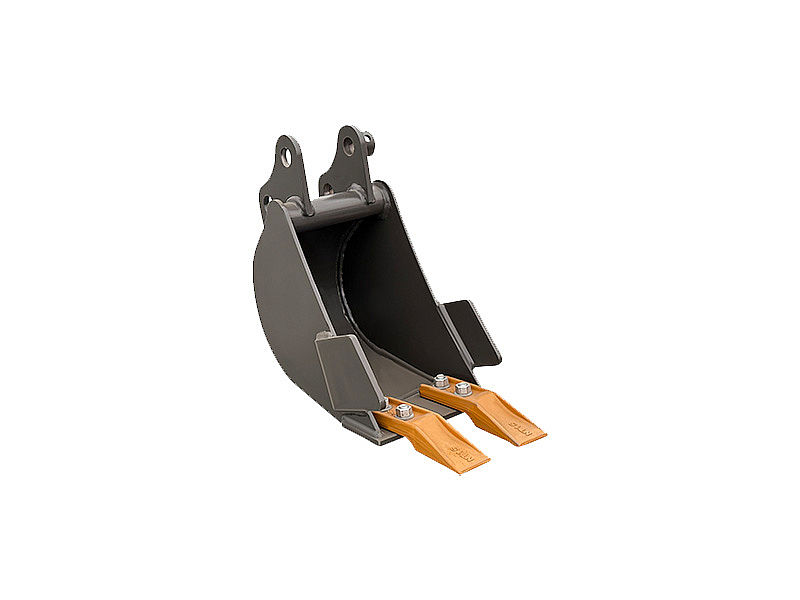

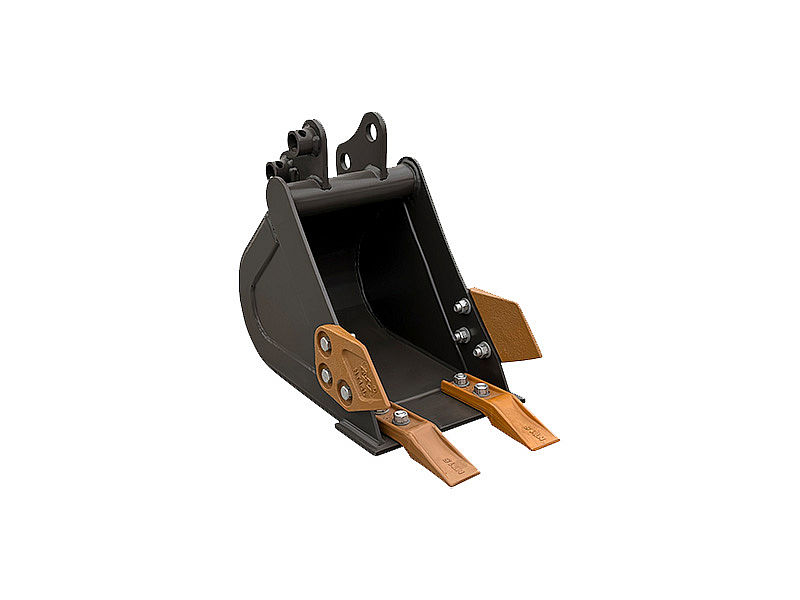

260 mm Bucket with teeth

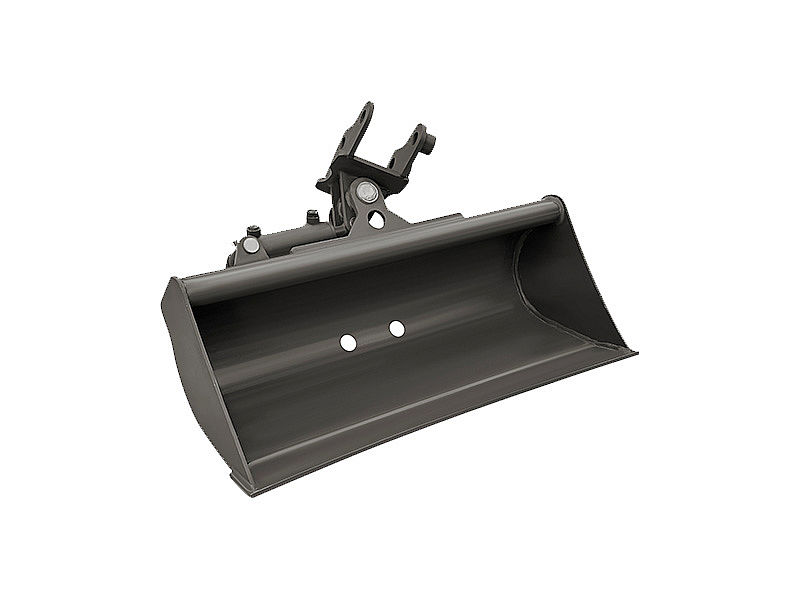

800 mm Hydraulic Tilt Bucket
Hydraulic Auger 200 mm

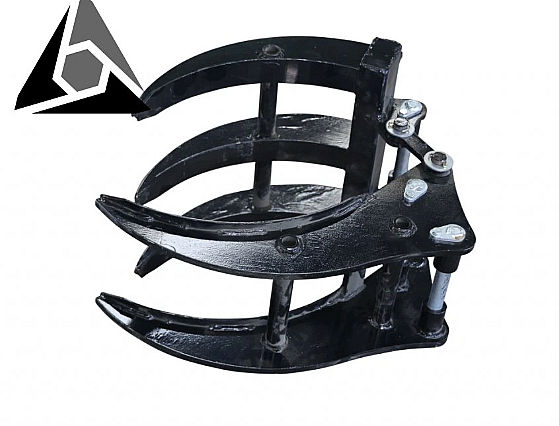

grapple

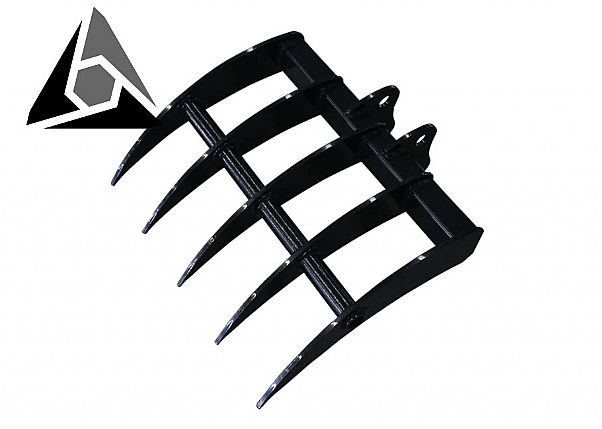

rake
ripper
LP102
200 mm Bucket with Teeth

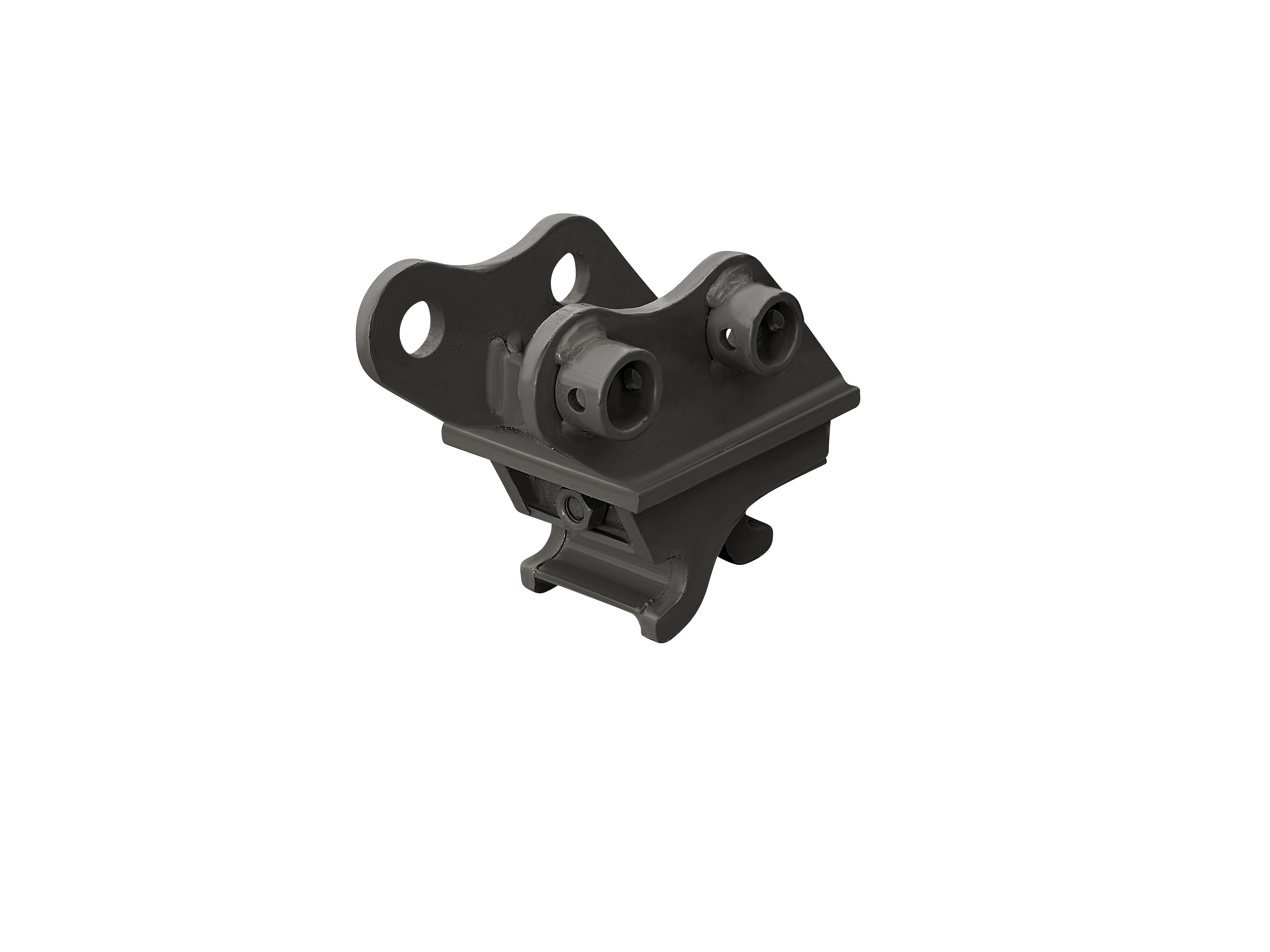

Mechanical quick hitch

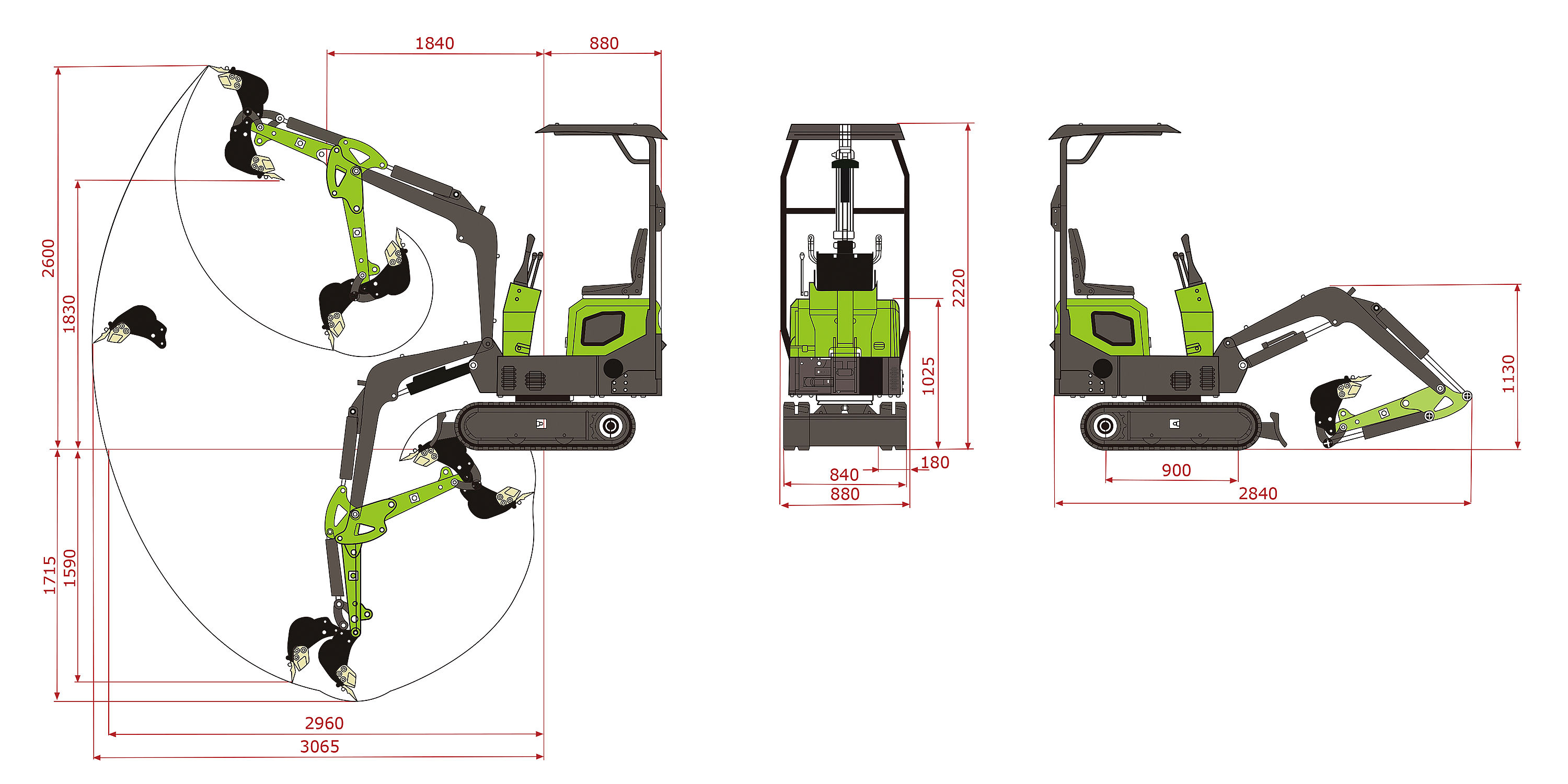

DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.023/380 |
| Swing Speed (rmp) | 0-13 |
| Gradeability (°) | 30 |
| Max. Bucket Digging Force (KN) | 7.2 |
| Max. Arm Digging Force (KN) | 4.6 |
| Engine Model | KUBOTA Z482 |
| Power/Revolution speed (Kw(HP)/rpm) | 7(9.3)/3000 |
| System Pressure (MPa) | 16 |
| Fuel Tank Capacity (L) | 4 |
| Hydraulic Circuit Capacity (L) | 10 |
| Cooling Circuit Capacity (L) | 3 |
| Engine Oil Capacity (L) | 1.8 |
| Bucket capacity (m³) | 0.023 |
| Max. Digging Height (mm) | 2600 |
| Max. Dumping Height (mm) | 1380 |
| Max. Digging Depth (mm) | 1715 |
| Max. Vertical Digging Depth (mm) | 1590 |
| Max. Digging Radius (mm) | 3065 |
| Max. Swing Radius (mm) | 1480 |
| Total Length (mm) | 2840 |
| Total Width (mm) | 880 |
| Machine Weight (with all fluids) (kg) | 870 |
| Canopy Height (mm) | 2220 |
| Axle Base (mm) | 900 |
| Minimum Ground Clearance (mm) | 132 |
| Wheel (track) Distance (mm) | 660 |
| Tail Swing Radius (mm) | 800 |
 |
2 years or 2000 hours |
