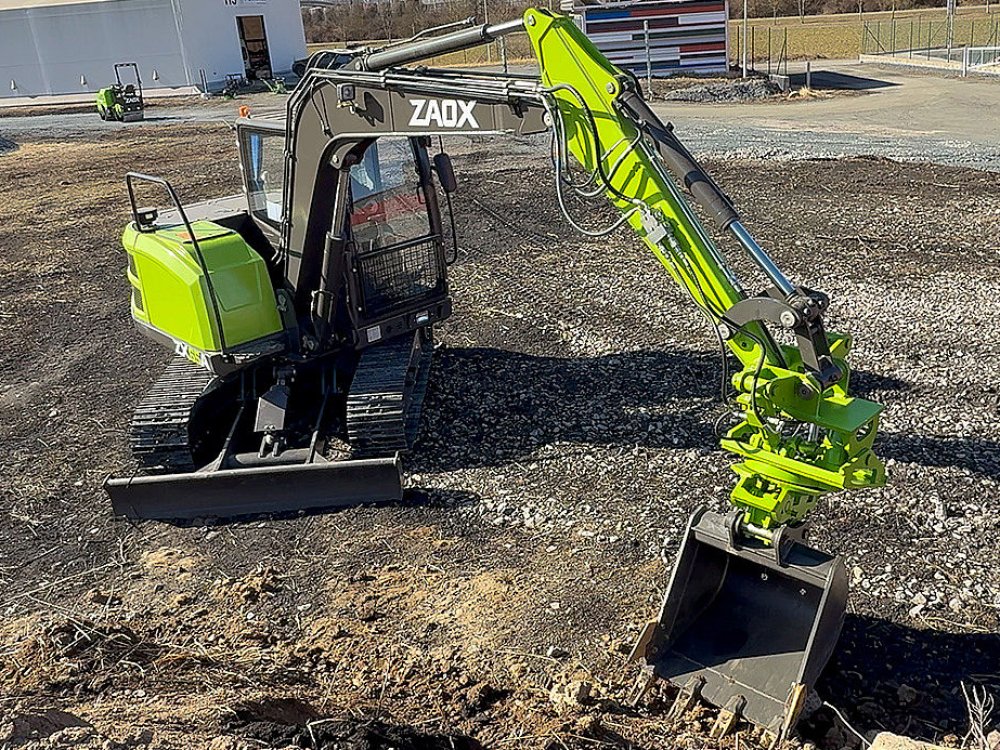

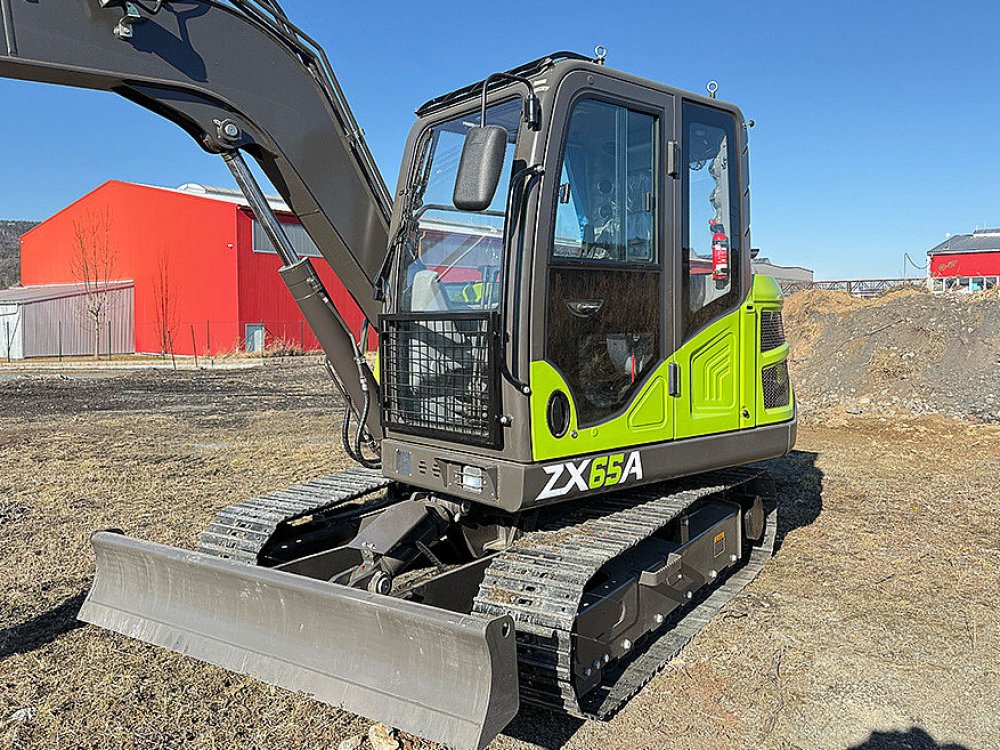

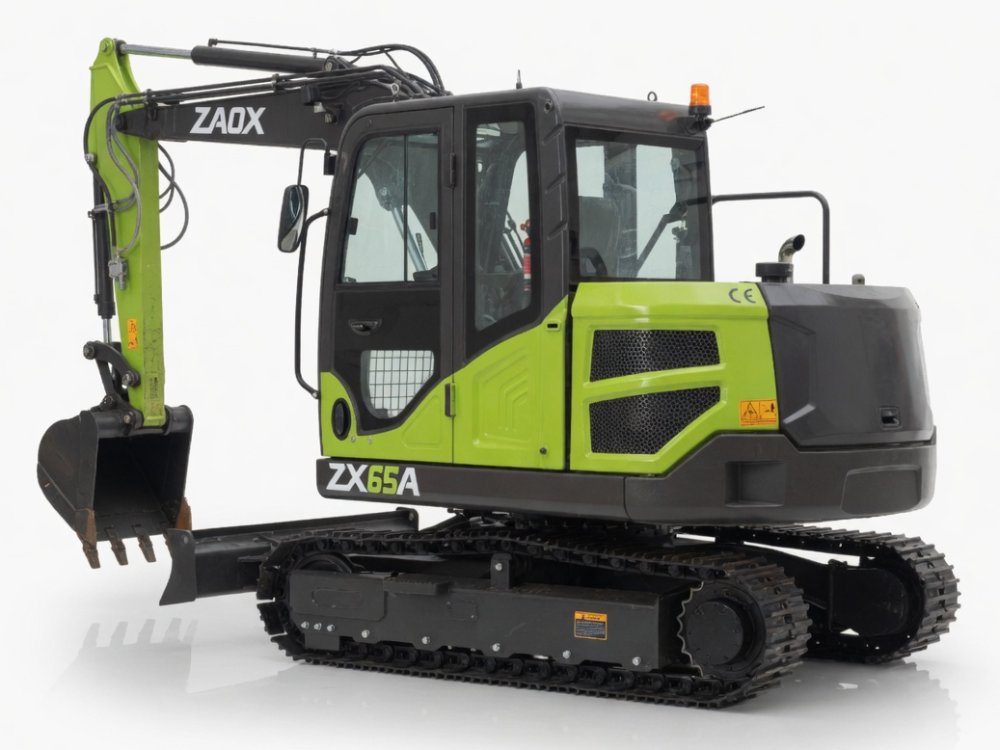

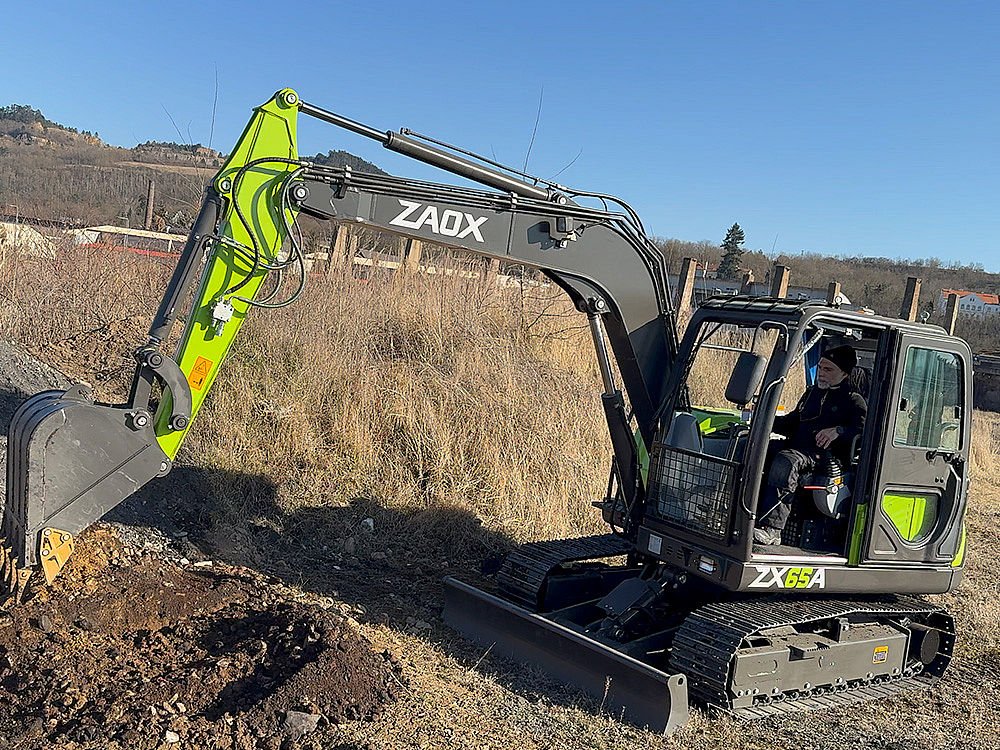

ZX65A

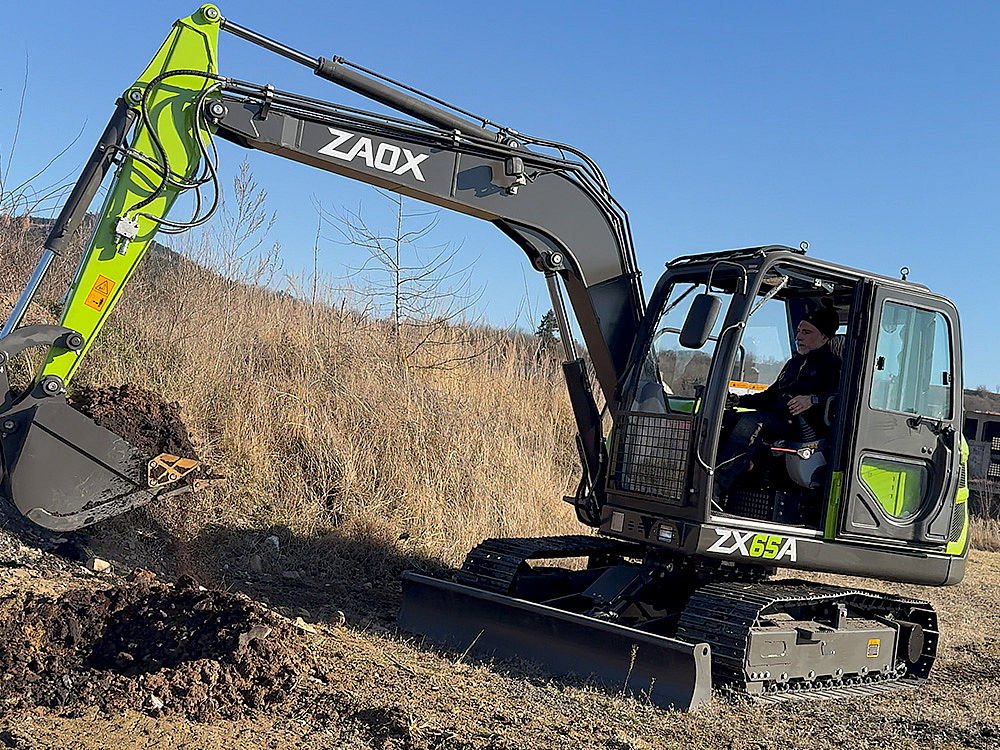

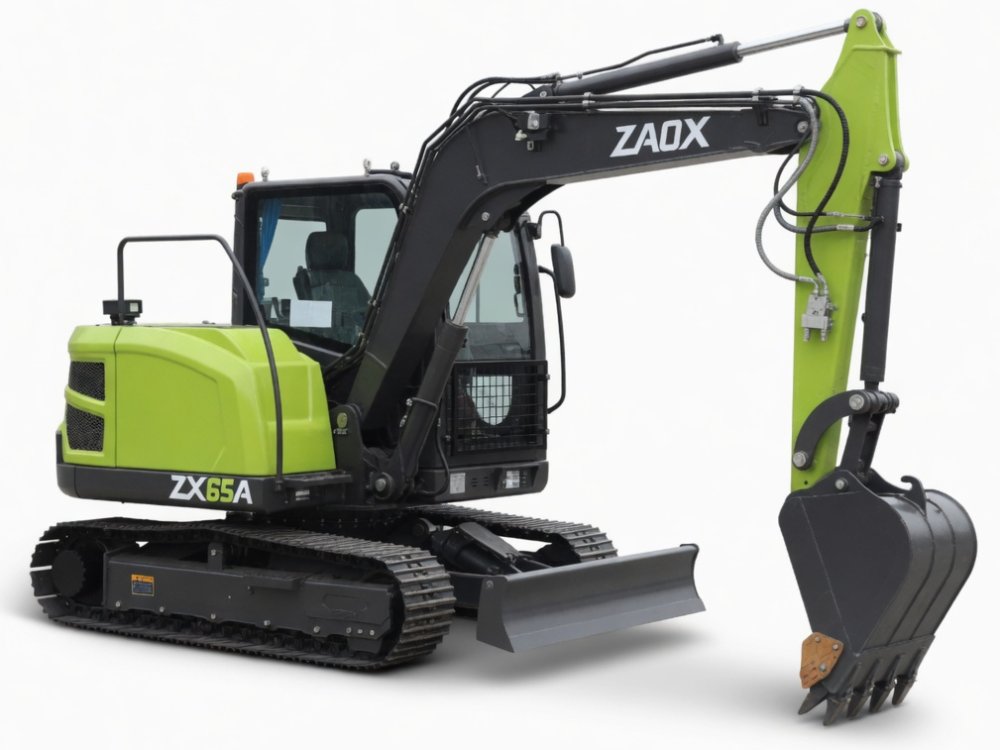

EXCAVATOR ZX65A
WEIGHT: 6 500 KG
MAX. DIGGING DEPTH: 3808 mm
KUBOTA V2607 ENGINE
700MM BUCKET WITH TEETH
A/C
H/L SPEED
AUXILIARY HYDRAULIC PIPELINE
ONE YEAR WARRANTY
The ZX65A is an excellent hydraulic excavator with an operative weight of 6350 kg (around 6.5 tons) and with a max Digging Depth over 4,1 mt. The machine comes with a 700 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZX65A is powered by a reliable and low fuel consumption Kubota V2607 Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power, it is fast, reliable and an enviable quality/price ratio.
The ZX65A is powered by a reliable and low fuel consumption Kubota V2607 Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power, it is fast, reliable and an enviable quality/price ratio.
FACTORY OPTIONS
Hydraulic Thumb
Quick Hitch Aux Pipeline
Second Aux. Pipeline
AVAILABLE ACCESSORIES

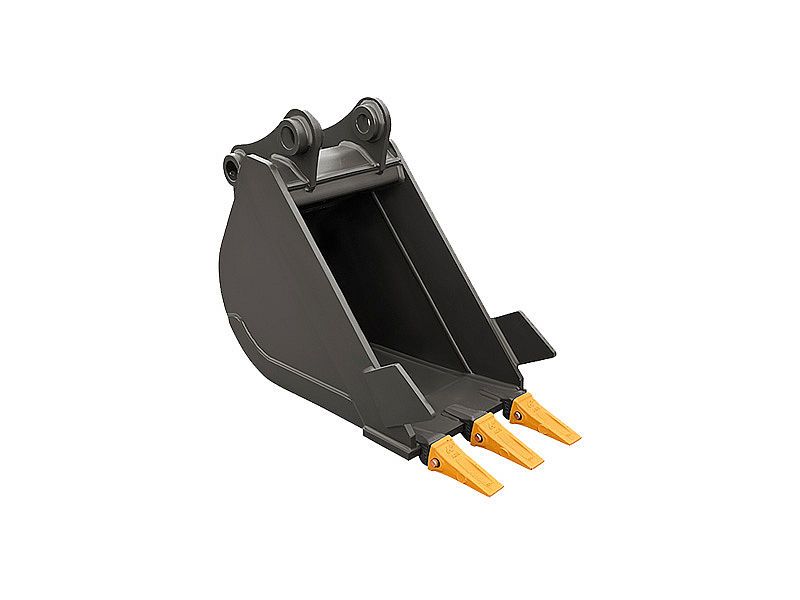

420 mm Bucket with Teeth
Tilt Rotator with quick hitch

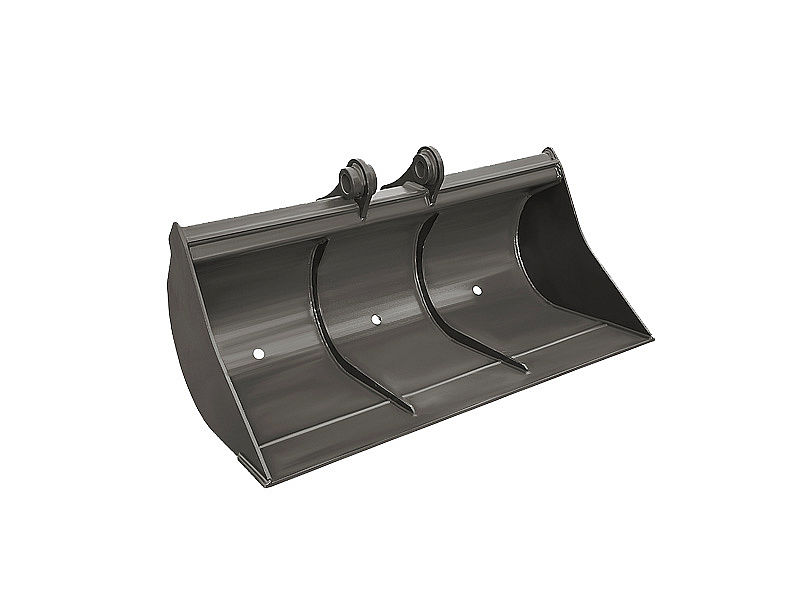

1200 mm Clean Bucket
LP263

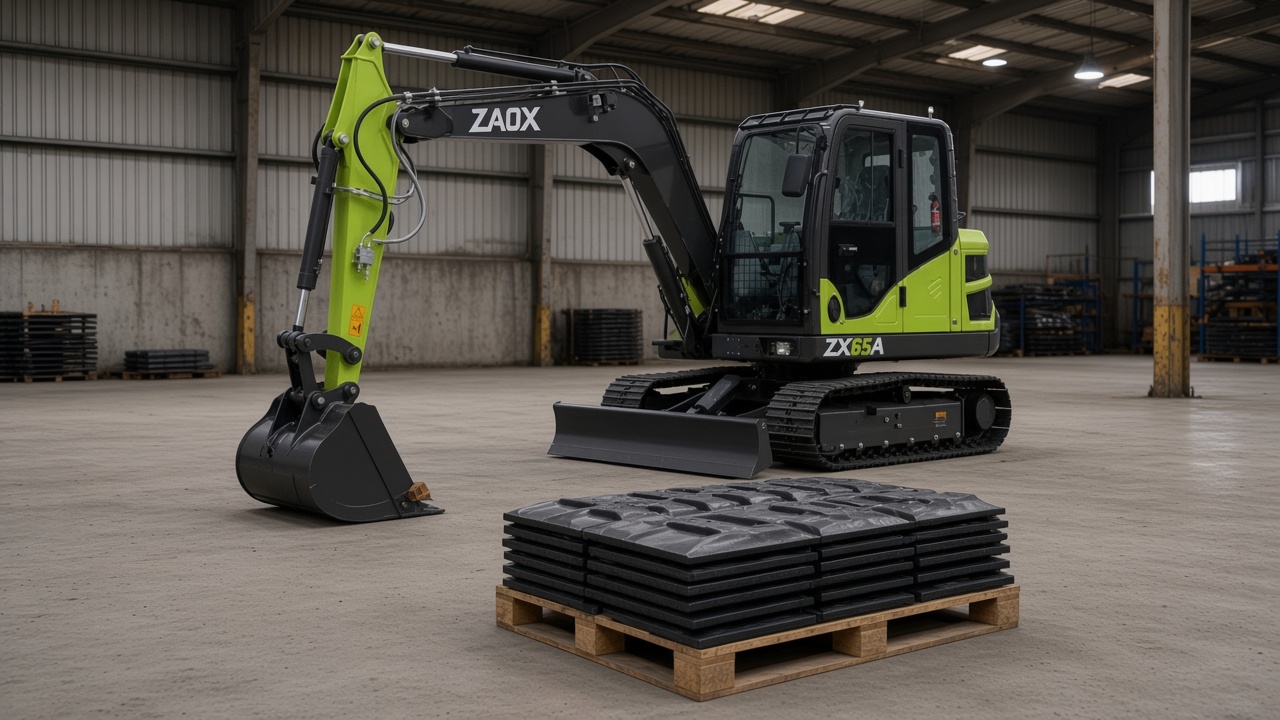

550 mm Wide Track Shoes for ZX65A Excavator

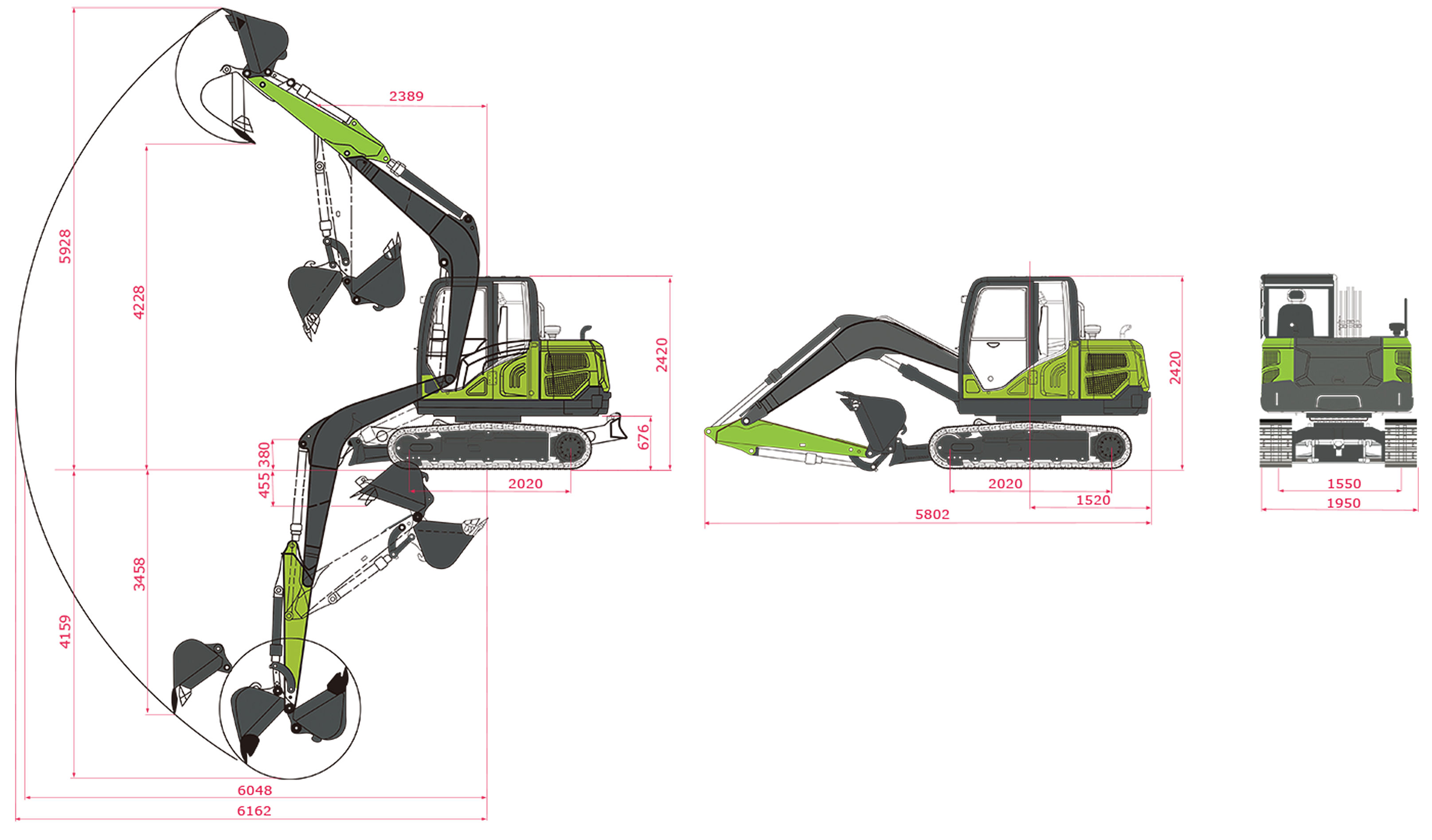

DETAILED SPECIFICATION
| Standard Bucket Capacity/Length (?/mm) | 0.21/700 |
| Swing Speed (rmp) | 1-11 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (KN) | 48 |
| Max. Arm Digging Force (KN) | 35 |
| Engine Model | KUBOTA V2706 |
| Power/Revolution speed (Kw(HP)/rpm) | 42.4[56.8]/2200 |
| System Pressure (MPa) | 28 |
| Fuel Tank Capacity (L) | 87 |
| Hydraulic Circuit Capacity (L) | 100 |
| Cooling Circuit Capacity (L) | 18 |
| Engine Oil Capacity (L) | 12 |
| Bucket capacity (m³) | 0.21 |
| Max. Digging Height (mm) | 5499 |
| Max. Dumping Height (mm) | 3845 |
| Max. Digging Depth (mm) | 3808 |
| Max. Vertical Digging Depth (mm) | 2983 |
| Max. Digging Radius (mm) | 6128 |
| Max. Swing Radius (mm) | 2607 |
| MAx. Dozer Blade Lifting Distance (mm) | 376 |
| MAx. Dozer Blade Cutting Distance (mm) | 474 |
| Total Length (mm) | 5940 |
| Total Width (mm) | 1950 |
| Machine Weight (with all fluids) (kg) | 6275 |
| Cabin Height (mm) | 2600 |
| Axle Base (mm) | 1990 |
| Minimum Ground Clearance (mm) | 353 |
| Wheel (track) Distance (mm) | 1480 |
| Tail Swing Radius (mm) | 1689 |
 |
