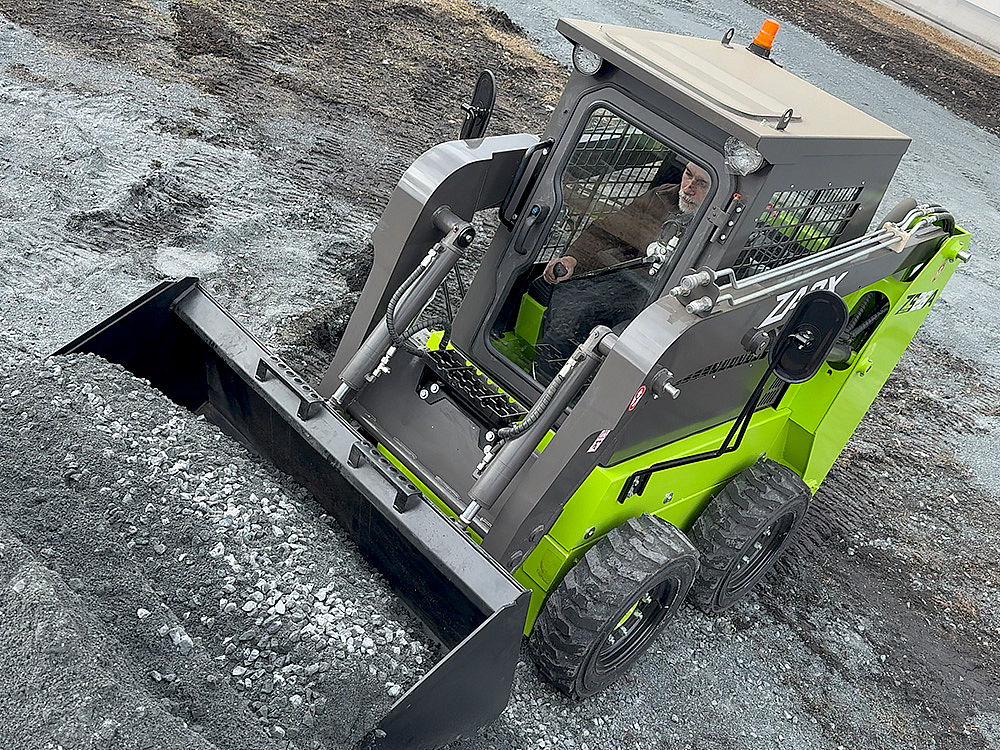

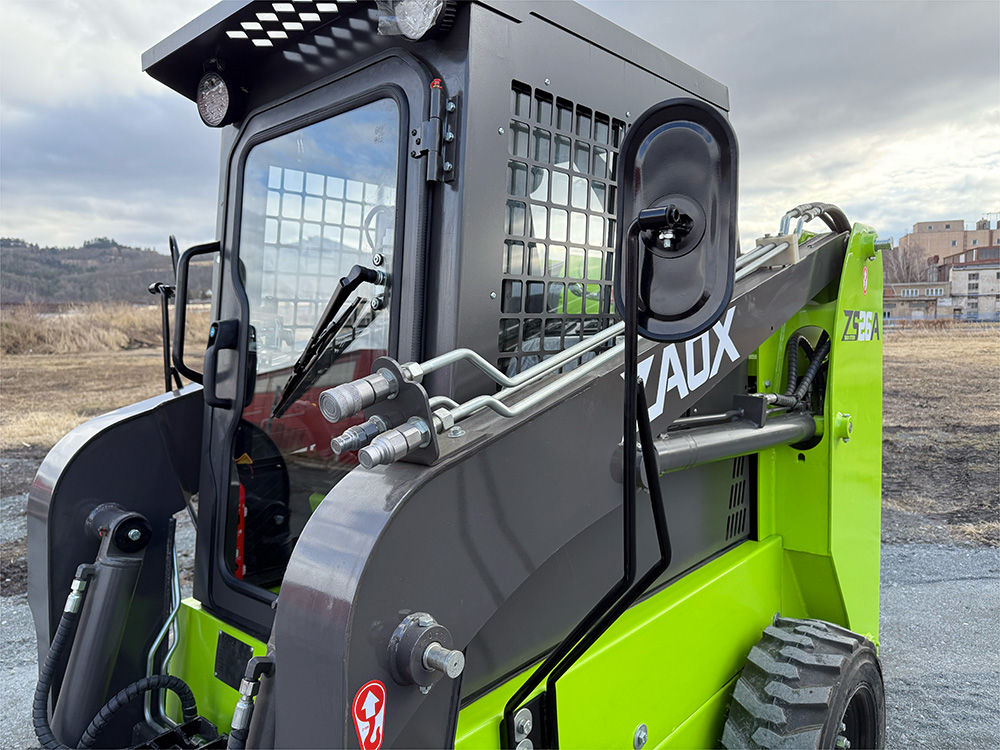

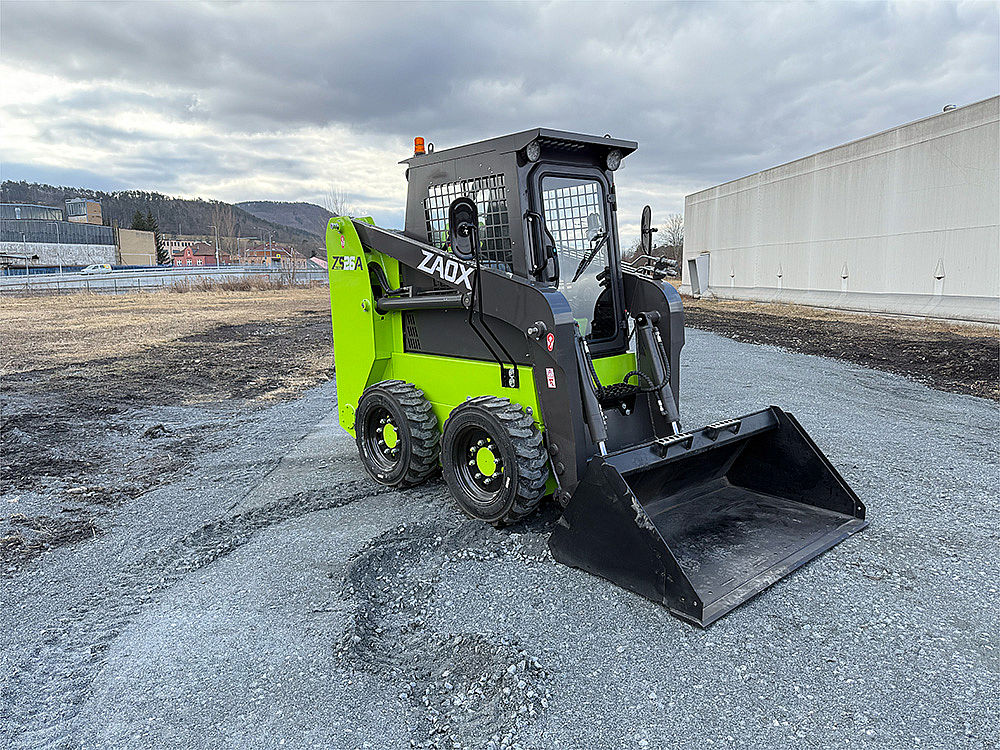

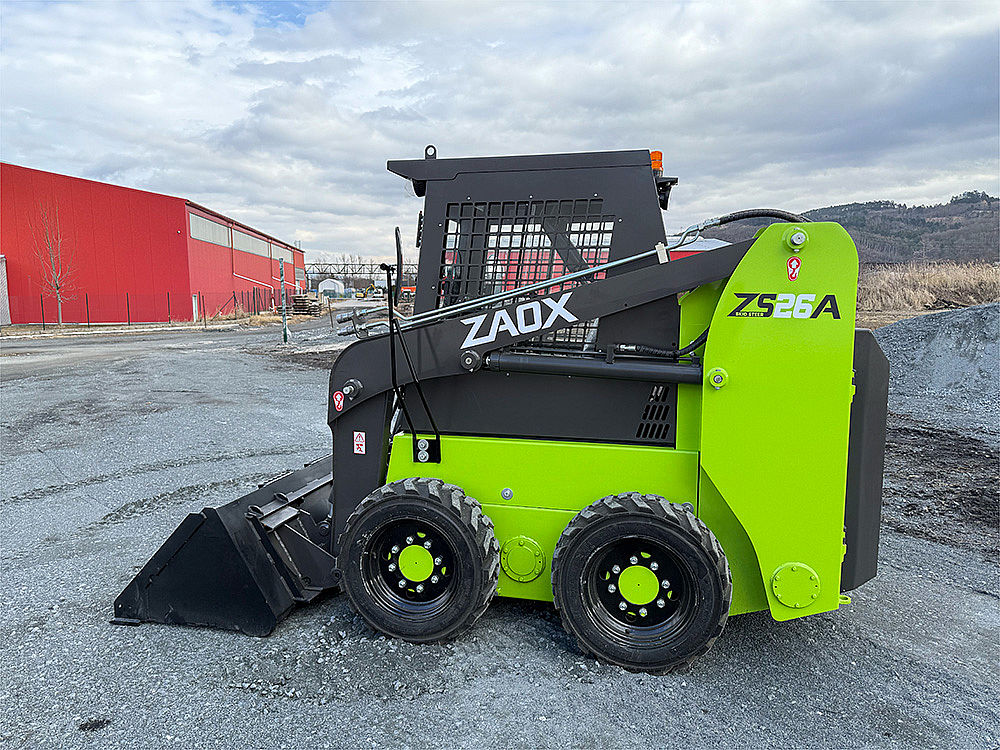

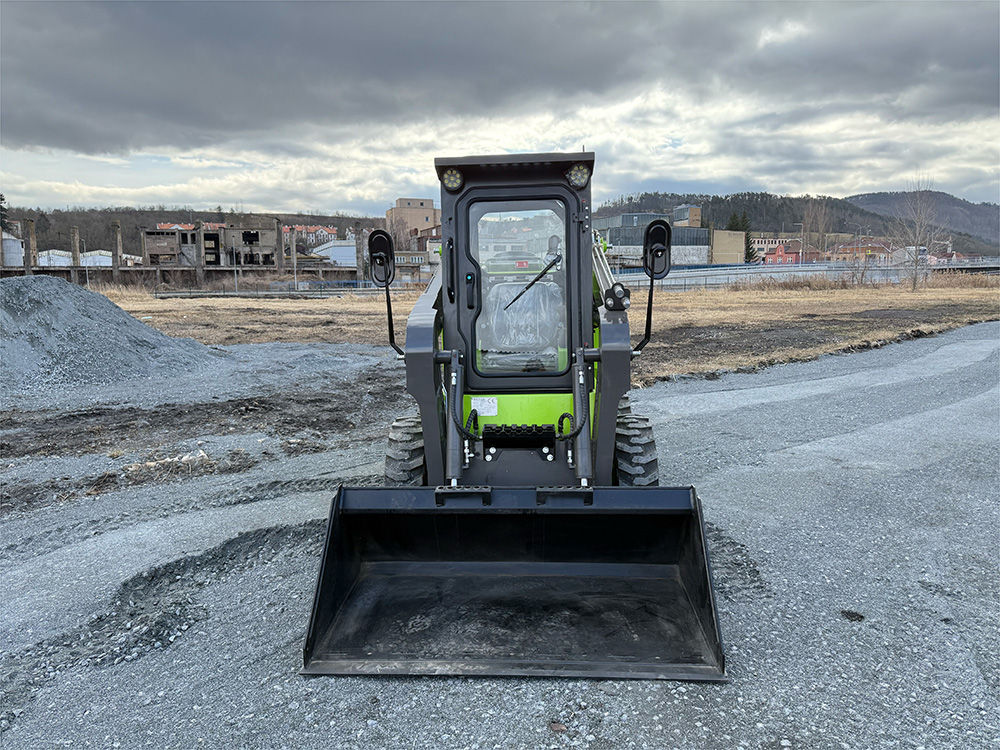

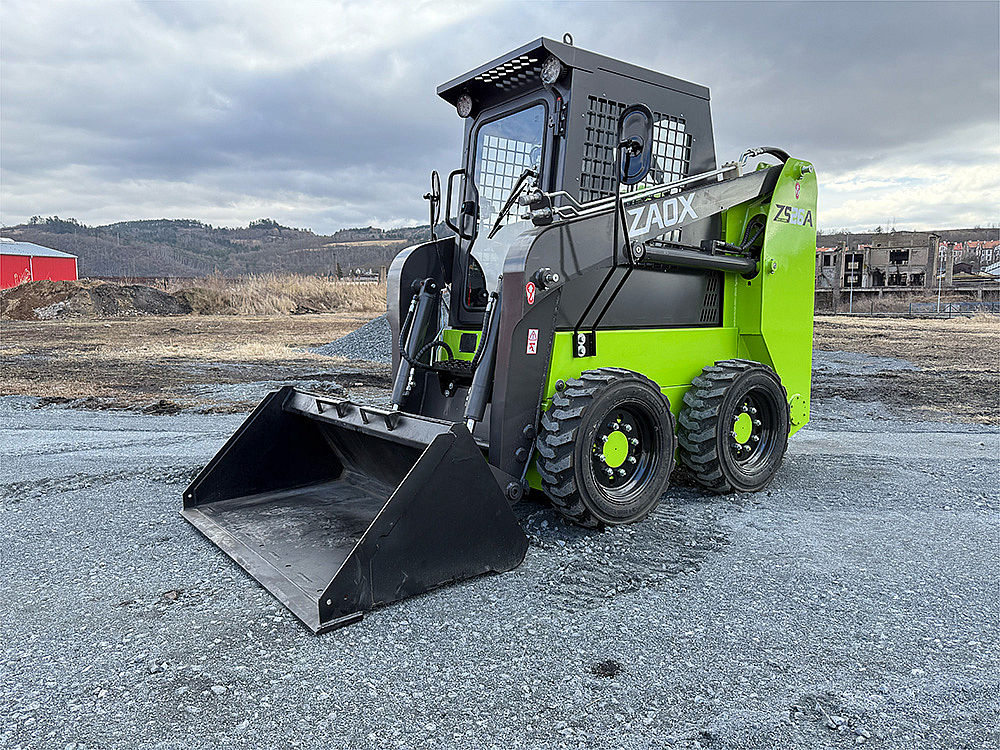

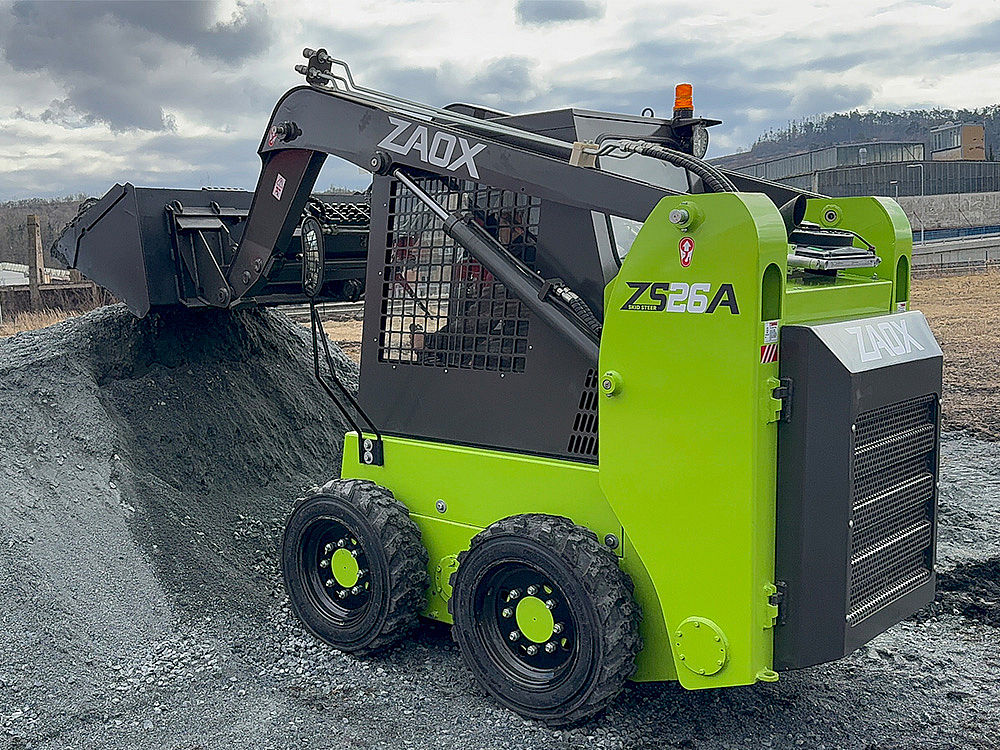

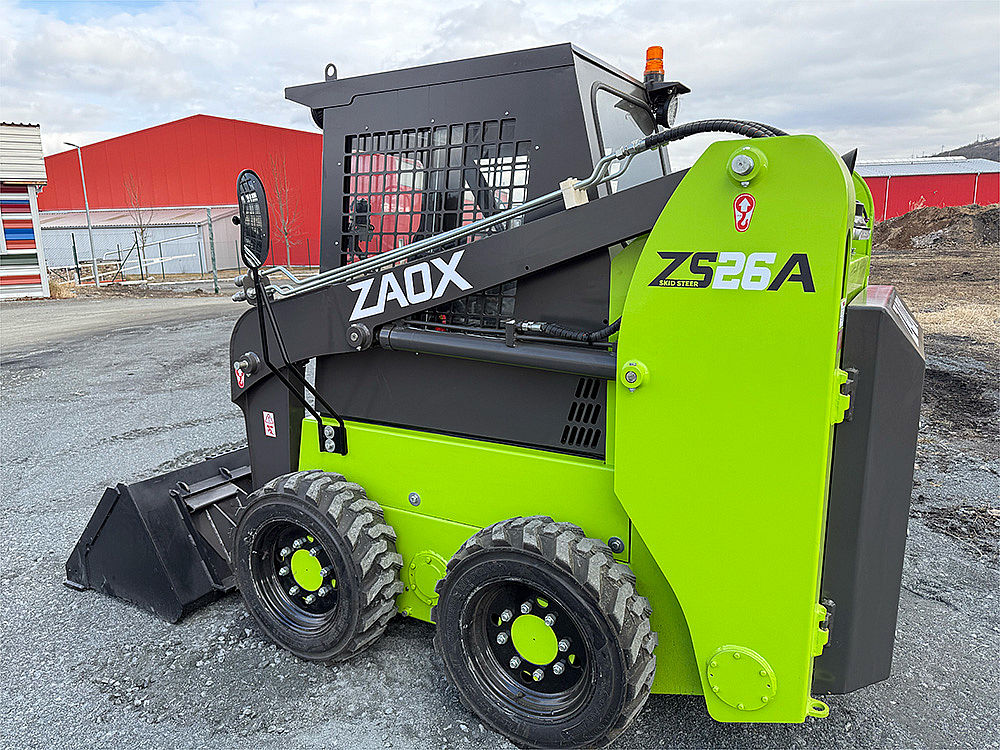

SKID LOADER ZS26A

The Skid loader ZS26A from ZAOX, is a medium-sized machine with an operating weight of approximately 2675 kg, powered by a Korean LS Mtron L3CRV-T7 engine with Euro V standards, which guarantee low fuel consumption.

The machine is equipped with a bucket with a capacity of 0.3 m3, 1400 mm wide and has reached the real unloading height of 2000 mm.

Compactness and ease of use, high power, together with various accessories, make this vehicle an ideal companion for any type of company.

Machine Assets

LS Mtron L3CRV-T7 Engine Two year warranty 1400mm Bucket Integrated Manual Quick Coupler Hydraulic Transmission 3-Way Auxiliary Hydraulics

Extended Warranty

Extended Warranty
Close

It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.

3 years or 3000 hours(+$1,415.00)
Select Click to Deselect

4 years or 4000 hours(+$2,359.00)
Select Click to Deselect
Factory Options

Factory Options
Close

Select the basic configuration. Remember these options can be added only in the factory and not after the purchase.

A/C(+$750.00)
Select Click to Deselect

Hydraulic Controls(+$1,070.00)
Select Click to Deselect

Save Settings
Machinery
Accessories

Machinery
Accessories
Close

Save Settings

Your configuration

SKID LOADER ZS26A ($23,724.80)

Total Price

$23,724.80

Submit Order

Discount : 12.00 % OFF
(Sticker Price : $26,960.00)

Discount is not applied on Factory Options and Accessories.
All prices are without VAT

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Machinery Size
(mm)	Overall Operating Height	2675
(mm)	Height to top of cab	2000
(mm)	Length Without Bucket	2300
(mm)	Overall Length with Bucket	2950
(mm)	Width	1300
(mm)	Bucket Width	1400
(mm)	Height to bottom of flat bucket	2558
(mm)	Height to Bucket Hinge Pin	2725
(mm)	Wheelbase	879
(mm)	Ground Clearance	140
(°)	Angle of Departure	20
(mm)	Distance Between the Rear Axle and the Bumper	946
(mm)	Tread Width	1080
Tech. Specifications
(m³)	Bucket capacity	0.3
(km/h）	Max Speed	10
(L/min)	Rated flux	60
(L/min)	High Flow Flux	/
(Kg)	Operative weight	2675
	Engine Model	LS Mtron L3CRV-T7
(Kw(HP)/rpm)	Power/revolution speed	24.5[57]/2600
(L)	Fuel tank capacity	60
(kg)	Operating load	500
Working Range
(mm)	Dumping height	2000
(°)	Dumping angle at maximum height	40
(mm)	Maximum Dumping Distance from Frame	790
(°)	Rollback of Bucket on Ground	30
(°)	Rollback of Bucket at Full Height	104
(mm)	Front Turning Radius without Bucket	1760
(mm)	Front Turning Radius	1296
(mm)	Rear Turning Radius	1098

Machinery Size
Overall Operating Height
(mm)		2675
Height to top of cab
(mm)		2000
Length Without Bucket
(mm)		2300
Overall Length with Bucket
(mm)		2950
Width
(mm)		1300
Bucket Width
(mm)		1400
Height to bottom of flat bucket
(mm)		2558
Height to Bucket Hinge Pin
(mm)		2725
Wheelbase
(mm)		879
Ground Clearance
(mm)		140
Angle of Departure
(°)		20
Distance Between the Rear Axle and the Bumper
(mm)		946
Tread Width
(mm)		1080
Tech. Specifications
Bucket capacity
(m³)		0.3
Max Speed
(km/h）		10
Rated flux
(L/min)		60
High Flow Flux
(L/min)		/
Operative weight
(Kg)		2675
Engine Model
		LS Mtron L3CRV-T7
Power/revolution speed
(Kw(HP)/rpm)		24.5[57]/2600
Fuel tank capacity
(L)		60
Operating load
(kg)		500
Working Range
Dumping height
(mm)		2000
Dumping angle at maximum height
(°)		40
Maximum Dumping Distance from Frame
(mm)		790
Rollback of Bucket on Ground
(°)		30
Rollback of Bucket at Full Height
(°)		104
Front Turning Radius without Bucket
(mm)		1760
Front Turning Radius
(mm)		1296
Rear Turning Radius
(mm)		1098
