WEIGHT

260 Kg

Bucket Width

592

Excavator Weight

2.5 - 5.5

Rotary Screen diameter

592

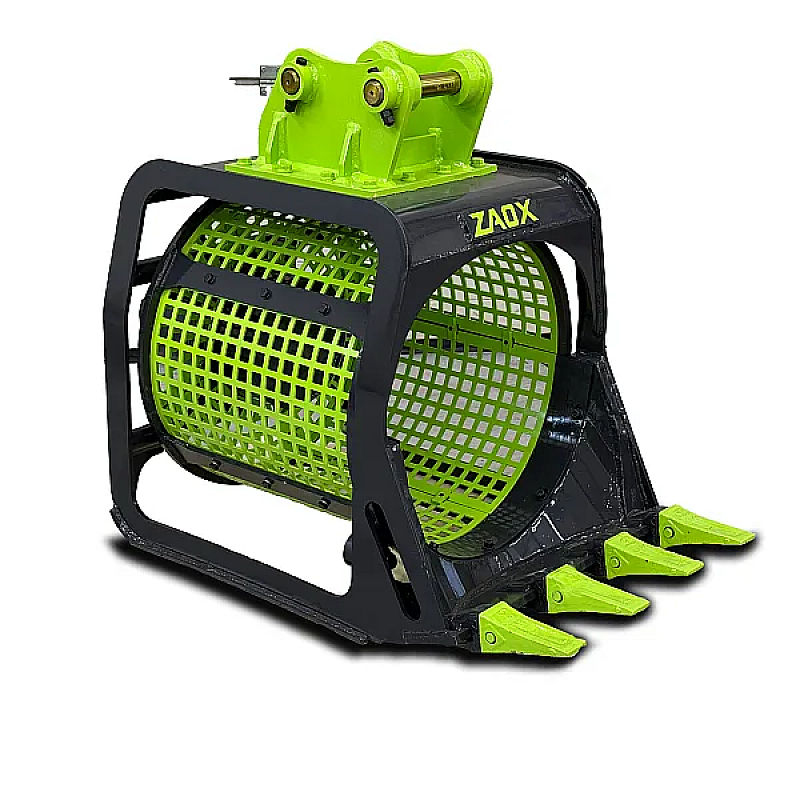

Advanced rotary screening bucket designed for mini excavators in the 2.5-5.5 ton class. Compatible with ZA20A, ZA28A, and ZA38A models, featuring appropriate mounting configurations to match respective pin specifications. Compact dimensions: 1098mm length x 592mm width x 396mm height with Ø592mm screening drum. Operating specifications: 10-12 MPa system pressure, 18-20 L/min rated flow, 30-35 rpm rotary speed. The rotating drum continuously agitates materials while automatically clearing particles from screen perforations, preventing clogging during operation. Standard 25mm mesh dimension with alternative mesh sizes available (optional). Perfect for soil separation, debris screening, and construction material sorting. Enhances operational flexibility and job site productivity by transforming your excavator into specialized screening equipment. Professional construction with 12-month warranty included.

Hydraulic Controls

Enhancing Efficiency

25 mm Mesh Dimension

Automatic flow regulator

Performance

Machine Specification

2 years(+$300.00)

Custom mesh size(+$180.00)

Flow/pressure control valve (+$500.00)
Couple Hydraulic Hoses for rotary screening bucket (ZA20-38 & 65) (+$104.00)
Hydraulic Quick Coupler 1/2 for Screening Bucket (+$284.00)

(mm) Bucket Width 592
(mm) Length 1098
(mm) Height 396

(MPa) System Pressure 10-12
(L/min) Rated flux 18-20
(ton) Excavator Weight 2.5 - 5.5
(mm) Rotary Screen diameter 592
(r/m) Rotary Speed 30-35

Advanced rotary screening bucket designed for mini excavators in the 2.5-5.5 ton class. Compatible with ZA20A, ZA28A, and ZA38A models, featuring appropriate mounting configurations to match respective pin specifications. Compact dimensions: 1098mm length x 592mm width x 396mm height with Ø592mm screening drum. Operating specifications: 10-12 MPa system pressure, 18-20 L/min rated flow, 30-35 rpm rotary speed. The rotating drum continuously agitates materials while automatically clearing particles from screen perforations, preventing clogging during operation. Standard 25mm mesh dimension with alternative mesh sizes available (optional). Perfect for soil separation, debris screening, and construction material sorting. Enhances operational flexibility and job site productivity by transforming your excavator into specialized screening equipment. Professional construction with 12-month warranty included.

Machinery Assets
Hydraulic Controls Enhancing Efficiency 25 mm Mesh Dimension Automatic flow regulator
  • Extended Warranty

    It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.

    2 years(+$300.00)
    Select Click to Deselect
  • Factory Options

    Select the basic configuration. Remember these options can be added only in the factory and not after the purchase.

    Custom mesh size(+$180.00)
    Select Click to Deselect
  • Machinery
    Accessories
    Flow/pressure control valve (+$500.00)
    Select Click to Deselect
    Couple Hydraulic Hoses for rotary screening bucket (ZA20-38 & 65) (+$104.00)
    Select Click to Deselect
    Hydraulic Quick Coupler 1/2 for Screening Bucket (+$284.00)
    Select Click to Deselect
Machinery Size
(mm) Bucket Width 592
(mm) Length 1098
(mm) Height 396
Tech. Specifications
(MPa) System Pressure 10-12
(L/min) Rated flux 18-20
(ton) Excavator Weight 2.5 - 5.5
(mm) Rotary Screen diameter 592
(r/m) Rotary Speed 30-35
Machinery Size
Bucket Width
(mm) 592
Length
(mm) 1098
Height
(mm) 396
Tech. Specifications
System Pressure
(MPa) 10-12
Rated flux
(L/min) 18-20
Excavator Weight
(ton) 2.5 - 5.5
Rotary Screen diameter
(mm) 592
Rotary Speed
(r/m) 30-35
