WEIGHT

150 Kg

Bucket Width

580

Excavator Weight

1.2 - 2.5

Rotary Screen diameter

500

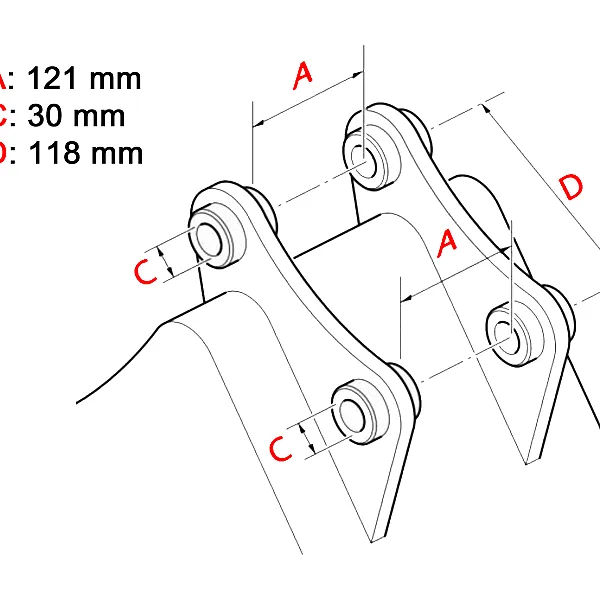

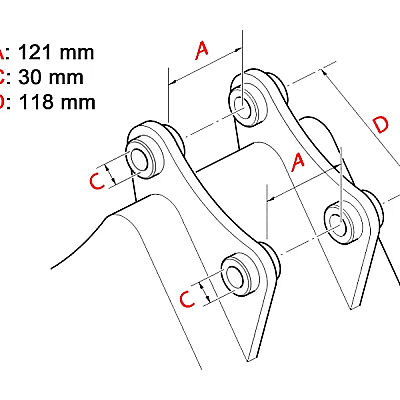

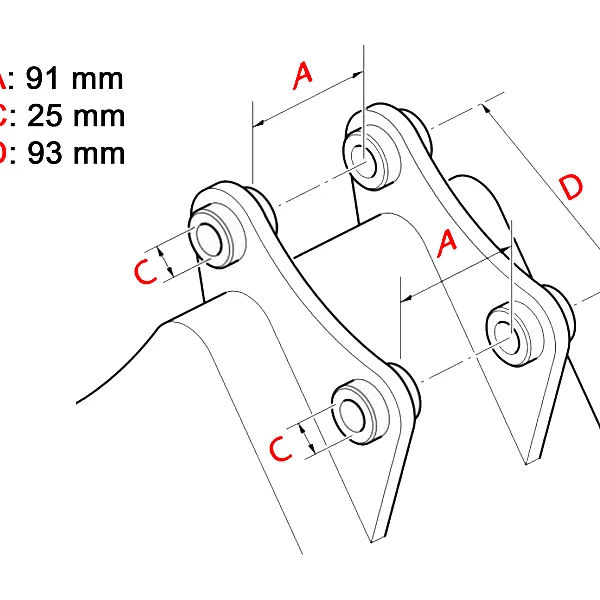

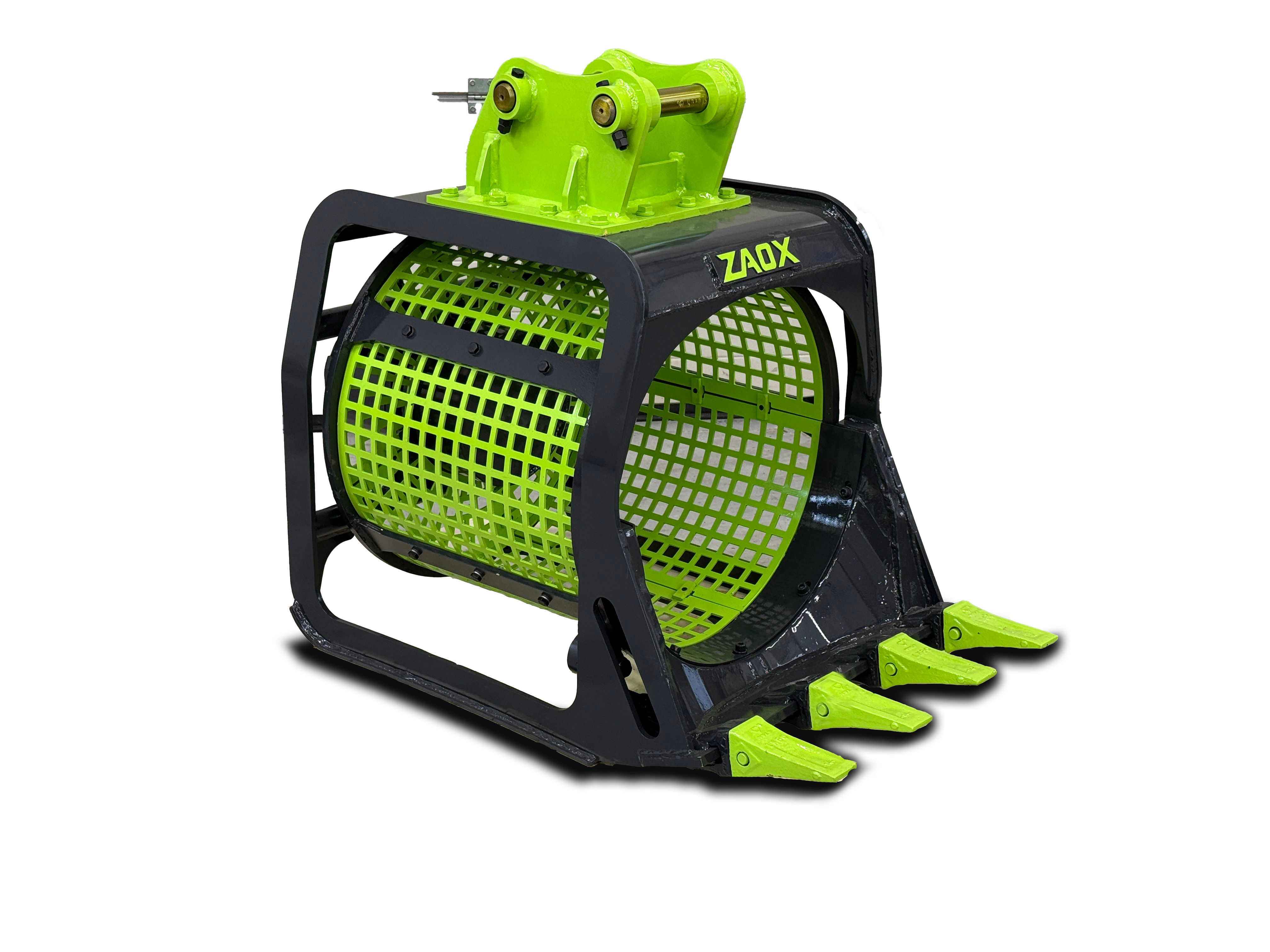

Advanced rotary screening bucket with end-drum discharge mechanism designed for mini excavators in the 1.2-2.5 ton class. Compatible with ZA16A and ZA20A models, featuring dual mounting configurations to match respective pin specifications (25mm/30mm diameter). Compact dimensions: 1062mm length x 590mm width x 758mm height, weighing 155kg with Ø500mm screening drum. The rotating drum continuously agitates materials while automatically clearing particles from screen perforations, preventing clogging during operation. Standard 25mm mesh dimension with alternative mesh sizes available (optional). Integrated hydraulic controls with optional pressure and flow control valve for enhanced operation control. Perfect for soil separation, debris screening, and construction material sorting. Enhances operational flexibility and job site productivity by transforming your excavator into specialized screening equipment. Professional construction with 12-month warranty included

Hydraulic Controls

Enhancing Efficiency

25 mm Mesh Dimension

Automatic flow regulator

Performance

Machine Specification

2 years(+$350.00)

Custom mesh size(+$150.00)

Flow/pressure control valve (+$500.00)
Couple Hydraulic Hoses for rotary screening bucket (ZA10-16) (+$76.00)
Hydraulic Quick Coupler 3/8 for Screening Bucket hoses (+$184.00)
Couple Hydraulic Hoses for rotary screening bucket (ZA20-38 & 65) (+$104.00)
Hydraulic Quick Coupler 1/2 for Screening Bucket (+$284.00)

(mm) Bucket Width 580
(mm) Length 1062
(mm) Height 738

(MPa) System Pressure 10-12
(L/min) Rated flux 18-20
(ton) Excavator Weight 1.2 - 2.5
(mm) Rotary Screen diameter 500
(r/m) Rotary Speed 30-35

Advanced rotary screening bucket with end-drum discharge mechanism designed for mini excavators in the 1.2-2.5 ton class. Compatible with ZA16A and ZA20A models, featuring dual mounting configurations to match respective pin specifications (25mm/30mm diameter). Compact dimensions: 1062mm length x 590mm width x 758mm height, weighing 155kg with Ø500mm screening drum. The rotating drum continuously agitates materials while automatically clearing particles from screen perforations, preventing clogging during operation. Standard 25mm mesh dimension with alternative mesh sizes available (optional). Integrated hydraulic controls with optional pressure and flow control valve for enhanced operation control. Perfect for soil separation, debris screening, and construction material sorting. Enhances operational flexibility and job site productivity by transforming your excavator into specialized screening equipment. Professional construction with 12-month warranty included

Machinery Assets
Hydraulic Controls Enhancing Efficiency 25 mm Mesh Dimension Automatic flow regulator
  • Extended Warranty

    It is possible to extend the 2 years warranty, adding additional years. Check the FAQ for more information about the warranty extension.

    2 years(+$350.00)
    Select Click to Deselect
  • Factory Options

    Select the basic configuration. Remember these options can be added only in the factory and not after the purchase.

    Custom mesh size(+$150.00)
    Select Click to Deselect
  • Machinery
    Accessories
    Flow/pressure control valve (+$500.00)
    Select Click to Deselect
    Couple Hydraulic Hoses for rotary screening bucket (ZA10-16) (+$76.00)
    Select Click to Deselect
    Hydraulic Quick Coupler 3/8 for Screening Bucket hoses (+$184.00)
    Select Click to Deselect
    Couple Hydraulic Hoses for rotary screening bucket (ZA20-38 & 65) (+$104.00)
    Select Click to Deselect
    Hydraulic Quick Coupler 1/2 for Screening Bucket (+$284.00)
    Select Click to Deselect
Machinery Size
(mm) Bucket Width 580
(mm) Length 1062
(mm) Height 738
Tech. Specifications
(MPa) System Pressure 10-12
(L/min) Rated flux 18-20
(ton) Excavator Weight 1.2 - 2.5
(mm) Rotary Screen diameter 500
(r/m) Rotary Speed 30-35
Machinery Size
Bucket Width
(mm) 580
Length
(mm) 1062
Height
(mm) 738
Tech. Specifications
System Pressure
(MPa) 10-12
Rated flux
(L/min) 18-20
Excavator Weight
(ton) 1.2 - 2.5
Rotary Screen diameter
(mm) 500
Rotary Speed
(r/m) 30-35
