WEIGHT
3875 Kg
Engine Model
KUBOTA D1703
Max. Digging Depth
3208
The ZA38A is an excellent hydraulic mini excavator with an operative weight of 3875 kg (around 3.9 tons). It is a no tail machine, with a max Digging Depth over 3,2 mt. The machine comes with a 580 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
The ZA38A is powered by a reliable and low fuel consumption Kubota D17034B Euro V engine in combination with top notch Hydraulic Components. The Zaox Load Sensing System provide a precise control of different execution elements, good controllability and high working efficiency.
The machine has plenty of power and an enviable quality/price ratio.
Kubota D1703 engine
580mm bucket with teeth
Swing boom
A/C
Rubber Truck
H/L speed
Auxiliary hydraulic Pipeline
Heated cab
Two year warranty
Performance
MINI EXCAVATOR ZA38A

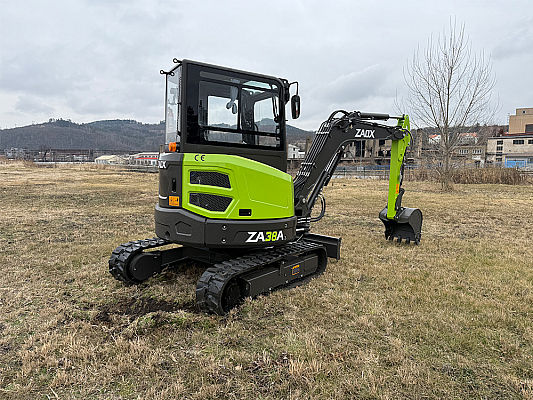

The ZA38A has a higher-class design: clean lines, solid proportions, and a cab that instantly gives it a professional, job-ready presence. Even with its size, the silhouette stays tidy and compact, with a well-balanced boom and upper frame and a modern look without excess. It’s a 3.9-ton machine that looks right in the yard—and clearly communicates stability and control at first glance.
MINI EXCAVATOR ZA38A

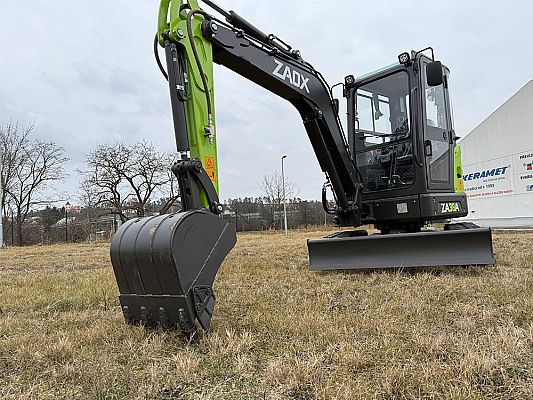

When digging, the ZA38A works with a “big machine” rhythm—stable, strong, and predictable in every movement. The Load Sensing hydraulic system keeps the response smooth and progressive, so you can control the boom and bucket precisely even with heavier material. In repeated dig-and-dump cycles it stays fluid and clean, without jerky reactions, helping you finish faster. That kind of control shows immediately: higher productivity and cleaner results.
MINI EXCAVATOR ZA38A
The ZA38A is a professional machine, with a serious presence, solid proportions, and a stance that communicates stability and control. The cab is well integrated and the overall profile stays clean and tidy, with nothing that feels random—built to work, not just to look good. Even standing still, it gives a strong sense of robustness and confidence, and on site it instantly builds credibility with customers and operators. It’s the kind of excavator you expect to see working every day, with a steady rhythm and no compromises.
MINI EXCAVATOR ZA38A

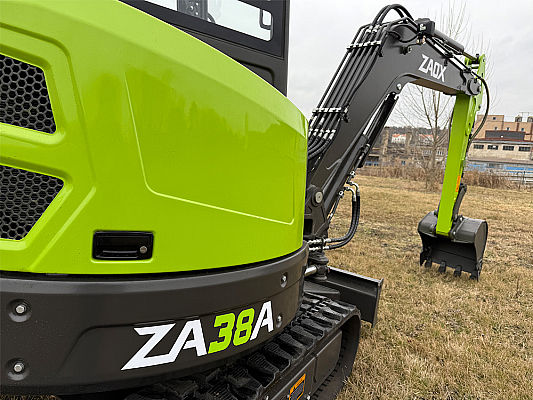

Here the ZA38A looks properly aggressive: a tall rear profile, sharp lines, and a presence that fills the frame without feeling overdone. The vents and panels are clean and tough, with a modern design that instantly communicates strength. Even standing still, it feels stable and powerful—like a machine built for hard daily work. It’s the kind of look people trust because it feels serious, not toy-like.
MINI EXCAVATOR ZA38A

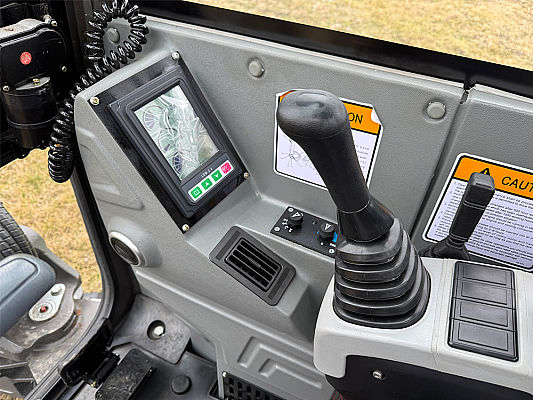

The ZA38A operator station is clean and job-ready: controls are well separated, the layout is logical, and everything sits naturally within reach. Levers and key switches are positioned for continuous work, so you’re not hunting for functions while digging or traveling. The cab is built for long hours—more comfort, less fatigue, and better precision. It’s a tidy, practical space where you feel in control right away.
Media
Machine Specification
| (mm) | Total Length | 4919 |
|---|---|---|
| (mm) | Total Width | 1755 |
| (kg) | Machine Weight (with all fluids) | 3800 |
| (mm) | Cabin Height | 2525 |
| (mm) | Axle Base | 1670 |
| (mm) | Wheel (track) Distance | 1420 |
| (mm) | Minimum Ground Clearance | 295 |
| (mm) | Tail Swing Radius | 870 |
| (㎡/mm) | Standard Bucket Capacity/Length | 0.2/580 |
|---|---|---|
| (rmp) | Swing Speed | 1-11 |
| (°) | Gradeability | 30 |
| (KN) | Max. Bucket Digging Force | 30 |
| (KN) | Max. Arm Digging Force | 18 |
| Engine Model | KUBOTA D1703 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 18.2[24.4]/2200 |
| (MPa) | System Pressure | 27 |
| (L) | Fuel Tank Capacity | 42 |
| (L) | Hydraulic Circuit Capacity | 30 |
| (L) | Cooling Circuit Capacity | 9 |
| (L) | Engine Oil Capacity | 8 |
| (m³) | Bucket capacity | 0.12 |
| Load Sensing System | YES | |
| Pump - Variable-output Piston Pump - axial | YES | |
| Manufacturer Hydraulic Pump | Hengly | |
| Manufacturer Travel Hydraulic Motor | LKC Hydraulics | |
| Manufacturer Swing Hydraulic Motor | RunSun Hydraulic |
| (mm) | Max. Digging Height | 4800 |
|---|---|---|
| (mm) | Max. Dumping Height | 3406 |
| (mm) | Max. Digging Depth | 3208 |
| (mm) | Max. Vertical Digging Depth | 2957 |
| (mm) | Max. Digging Radius | 5480 |
| (mm) | Max. Swing Radius | 2530 |
| (mm) | MAx. Dozer Blade Lifting Distance | 365 |
| (mm) | MAx. Dozer Blade Cutting Distance | 385 |
Stock Machines
| Machinery Size | ||
|---|---|---|
| (mm) | Total Length | 4919 |
| (mm) | Total Width | 1755 |
| (kg) | Machine Weight (with all fluids) | 3800 |
| (mm) | Cabin Height | 2525 |
| (mm) | Axle Base | 1670 |
| (mm) | Wheel (track) Distance | 1420 |
| (mm) | Minimum Ground Clearance | 295 |
| (mm) | Tail Swing Radius | 870 |
| Tech. Specifications | ||
| (㎡/mm) | Standard Bucket Capacity/Length | 0.2/580 |
| (rmp) | Swing Speed | 1-11 |
| (°) | Gradeability | 30 |
| (KN) | Max. Bucket Digging Force | 30 |
| (KN) | Max. Arm Digging Force | 18 |
| Engine Model | KUBOTA D1703 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 18.2[24.4]/2200 |
| (MPa) | System Pressure | 27 |
| (L) | Fuel Tank Capacity | 42 |
| (L) | Hydraulic Circuit Capacity | 30 |
| (L) | Cooling Circuit Capacity | 9 |
| (L) | Engine Oil Capacity | 8 |
| (m³) | Bucket capacity | 0.12 |
| Load Sensing System | YES | |
| Pump - Variable-output Piston Pump - axial | YES | |
| Manufacturer Hydraulic Pump | Hengly | |
| Manufacturer Travel Hydraulic Motor | LKC Hydraulics | |
| Manufacturer Swing Hydraulic Motor | RunSun Hydraulic | |
| Working Range | ||
| (mm) | Max. Digging Height | 4800 |
| (mm) | Max. Dumping Height | 3406 |
| (mm) | Max. Digging Depth | 3208 |
| (mm) | Max. Vertical Digging Depth | 2957 |
| (mm) | Max. Digging Radius | 5480 |
| (mm) | Max. Swing Radius | 2530 |
| (mm) | MAx. Dozer Blade Lifting Distance | 365 |
| (mm) | MAx. Dozer Blade Cutting Distance | 385 |
| Machinery Size | ||
|---|---|---|
| Total Length | ||
| (mm) | 4919 | |
| Total Width | ||
| (mm) | 1755 | |
| Machine Weight (with all fluids) | ||
| (kg) | 3800 | |
| Cabin Height | ||
| (mm) | 2525 | |
| Axle Base | ||
| (mm) | 1670 | |
| Wheel (track) Distance | ||
| (mm) | 1420 | |
| Minimum Ground Clearance | ||
| (mm) | 295 | |
| Tail Swing Radius | ||
| (mm) | 870 | |
| Tech. Specifications | ||
| Standard Bucket Capacity/Length | ||
| (㎡/mm) | 0.2/580 | |
| Swing Speed | ||
| (rmp) | 1-11 | |
| Gradeability | ||
| (°) | 30 | |
| Max. Bucket Digging Force | ||
| (KN) | 30 | |
| Max. Arm Digging Force | ||
| (KN) | 18 | |
| Engine Model | ||
| KUBOTA D1703 | ||
| Power/Revolution speed | ||
| (Kw(HP)/rpm) | 18.2[24.4]/2200 | |
| System Pressure | ||
| (MPa) | 27 | |
| Fuel Tank Capacity | ||
| (L) | 42 | |
| Hydraulic Circuit Capacity | ||
| (L) | 30 | |
| Cooling Circuit Capacity | ||
| (L) | 9 | |
| Engine Oil Capacity | ||
| (L) | 8 | |
| Bucket capacity | ||
| (m³) | 0.12 | |
| Load Sensing System | ||
| YES | ||
| Pump - Variable-output Piston Pump - axial | ||
| YES | ||
| Manufacturer Hydraulic Pump | ||
| Hengly | ||
| Manufacturer Travel Hydraulic Motor | ||
| LKC Hydraulics | ||
| Manufacturer Swing Hydraulic Motor | ||
| RunSun Hydraulic | ||
| Working Range | ||
| Max. Digging Height | ||
| (mm) | 4800 | |
| Max. Dumping Height | ||
| (mm) | 3406 | |
| Max. Digging Depth | ||
| (mm) | 3208 | |
| Max. Vertical Digging Depth | ||
| (mm) | 2957 | |
| Max. Digging Radius | ||
| (mm) | 5480 | |
| Max. Swing Radius | ||
| (mm) | 2530 | |
| MAx. Dozer Blade Lifting Distance | ||
| (mm) | 365 | |
| MAx. Dozer Blade Cutting Distance | ||
| (mm) | 385 | |
