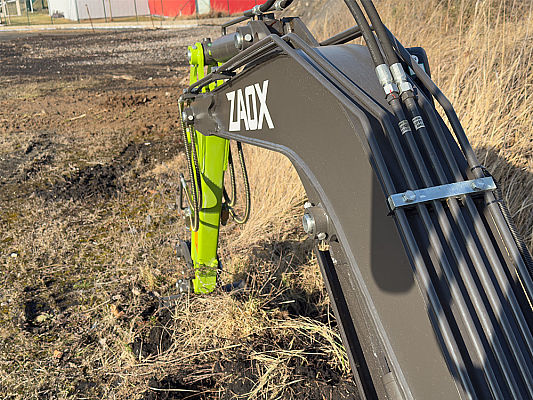

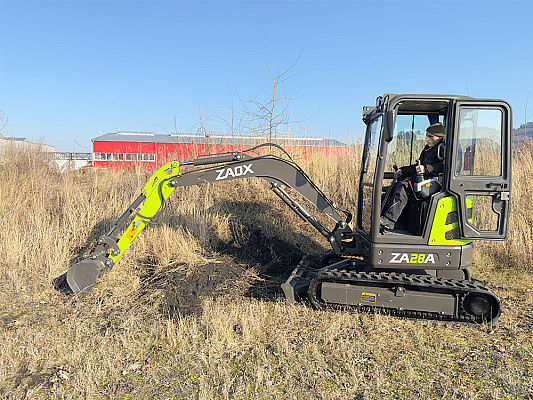

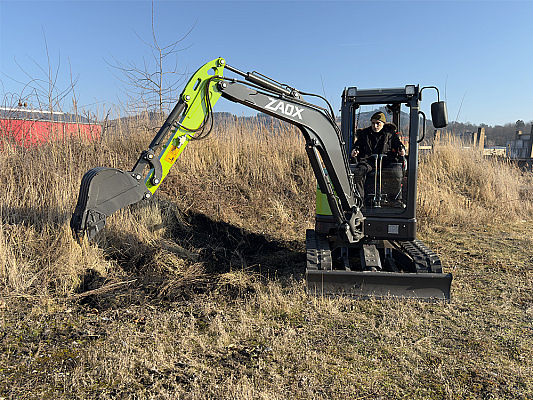

MINI EXCAVATOR ZA28A

The ZA28A is an excellent hydraulic mini excavator with an operative weight of 2795 kg (around 2.8 tons). It is a no tail machine, with a max Digging Depth over 2,8 mt. The machine comes with a 500 mm Standard Bucket, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.

The ZA28A is powered by a reliable and low fuel consumption Kubota D1105 Euro V engine in combination with top notch Hydraulic Components for a precise control of the execution elements, good controllability and high working efficiency.

The machine has plenty of power and an enviable quality/price ratio.

Machine Assets
Kubota D1105 engine 500mm bucket with teeth Swing boom Rubber Truck H/L speed Auxiliary hydraulic Pipeline Heated cab One year warranty
  • Extended
    Warranty

    Extended
    Warranty

    Close
    It is possible to extend the warranty by adding one year (so two years in total) or even adding two years (so three years in total). Be careful because the warranty extension is not on all parts of the machine, but only on the main ones (pump, hydraulic motors, etc.). Check the FAQ for more information about the warranty extension.
    2 years or 2000 hours(+$692.00)
    Select Click to Deselect
    3 years or 3000 hours(+$1,154.00)
    Select Click to Deselect
    5 years or 5000 hours(+$2,077.00)
    Select Click to Deselect
  • Factory
    Options

    Factory
    Options

    Close
    Select the basic configuration. Remember these options can be added only in the factory and not after the purchase.
    A/C(+$330.00)
    Select Click to Deselect
    Hydraulic Thumb(+$725.00)
    Select Click to Deselect
    Quick Hitch Aux Pipeline(+$375.00)
    Select Click to Deselect
    Second Aux. Pipeline(+$1,500.00)
    Select Click to Deselect
    Save Settings
  • Machinery
    Accessories

    Machinery
    Accessories

    Close
    Mechanical Quick Hitch (+$440.00)
    Select Click to Deselect
    Hydraulic Quick Hitch (+$900.00)
    Select Click to Deselect
    260 mm Bucket with Teeth (+$264.00)
    Select Click to Deselect
    800 mm Clean Bucket (+$396.00)
    Select Click to Deselect
    800 mm Hydraulic Tilt Bucket (+$792.00)
    Select Click to Deselect
    1000 mm Clean Bucket (+$660.00)
    Select Click to Deselect
    1000 mm Hydraulic Tilt Bucket (+$1,100.00)
    Select Click to Deselect
    Hydraulic Breaker LP155 (+$2,041.60)
    Select Click to Deselect

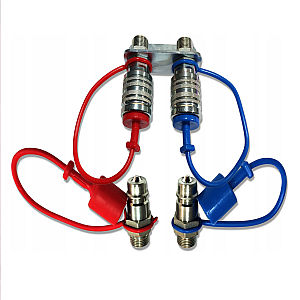

    Couple Hydraulic Hoses (+$75.00)
    Select Click to Deselect
    Moil/Pyramid Tool 53 mm (+$66.00)
    Select Click to Deselect
    Cone Tool 53 mm (+$75.00)
    Select Click to Deselect
    Chisel Tool 53 mm (+$75.00)
    Select Click to Deselect
    Save Settings

Your configuration

Total Price
$21,980.00 (≈$21,980.00)
MINI EXCAVATOR ZA28A ($23,088.42)
Total Price

$23,088.42

(≈$21,980.00)

Submit Order
Discount : 14.00 % OFF
(Sticker Price : $26,847.00)

Discount is not applied on Factory Options and Accessories.
All prices are without VAT

Submit the order is without obligation and it is not binding!

One of our sales manager will contact you by message or telephone to discuss your possible purchase in the next 48 hours.

Specification 2 Image
Machinery Size
(mm) Total Length 4195
(mm) Total Width 1550
(kg) Machine Weight (with all fluids) 2720
(mm) Cabin Height 2479
(mm) Axle Base 1550
(mm) Wheel (track) Distance 1250
(mm) Minimum Ground Clearance 285
(mm) Tail Swing Radius 860
Tech. Specifications
(㎡/mm) Standard Bucket Capacity/Length 0.1/500
(rmp) Swing Speed 1-10
(°) Gradeability 58
(KN) Max. Bucket Digging Force 23.5
(KN) Max. Arm Digging Force 14
Engine Model KUBOTA D1105
(Kw(HP)/rpm) Power/Revolution speed 14[18.7]/2000
(MPa) System Pressure 20.5
(L) Fuel Tank Capacity 23
(L) Hydraulic Circuit Capacity 30
(L) Cooling Circuit Capacity 9
(L) Engine Oil Capacity 4.2
(m³) Bucket capacity 0.1
Working Range
(mm) Max. Digging Height 4427
(mm) Max. Dumping Height 3005
(mm) Max. Digging Depth 2830
(mm) Max. Vertical Digging Depth 2500
(mm) Max. Digging Radius 4835
(mm) Max. Swing Radius 2160
(mm) MAx. Dozer Blade Lifting Distance 308
(mm) MAx. Dozer Blade Cutting Distance 360
Machinery Size
Total Length
(mm) 4195
Total Width
(mm) 1550
Machine Weight (with all fluids)
(kg) 2720
Cabin Height
(mm) 2479
Axle Base
(mm) 1550
Wheel (track) Distance
(mm) 1250
Minimum Ground Clearance
(mm) 285
Tail Swing Radius
(mm) 860
Tech. Specifications
Standard Bucket Capacity/Length
(㎡/mm) 0.1/500
Swing Speed
(rmp) 1-10
Gradeability
(°) 58
Max. Bucket Digging Force
(KN) 23.5
Max. Arm Digging Force
(KN) 14
Engine Model
KUBOTA D1105
Power/Revolution speed
(Kw(HP)/rpm) 14[18.7]/2000
System Pressure
(MPa) 20.5
Fuel Tank Capacity
(L) 23
Hydraulic Circuit Capacity
(L) 30
Cooling Circuit Capacity
(L) 9
Engine Oil Capacity
(L) 4.2
Bucket capacity
(m³) 0.1
Working Range
Max. Digging Height
(mm) 4427
Max. Dumping Height
(mm) 3005
Max. Digging Depth
(mm) 2830
Max. Vertical Digging Depth
(mm) 2500
Max. Digging Radius
(mm) 4835
Max. Swing Radius
(mm) 2160
MAx. Dozer Blade Lifting Distance
(mm) 308
MAx. Dozer Blade Cutting Distance
(mm) 360
