WEIGHT
1275 Kg
Engine Model
KUBOTA D722
Max. Digging Depth
1835
The ZA13A is an ultra compact hydraulic mini excavator with an operative weight of 1225 kg (around 1.2 tons). It is a no tail machine, with a max Digging Depth over 1,80 mt. The machine comes with a 380 mm Standard Bucket, Retractable Tracks, Double Travel Speed and Auxiliary Hydraulic Pipeline (to use for example an Hydraulic Hammer) as standard.
When tracks are retracted, the machine is wide just 75 cm, allowing the possibility to enter narrow spaces, such as doors and cellars. Stability during normal working is excellent extending the tracks to 98 cm.
The ZA13A is powered by a reliable and low fuel consumption Kubota D722 Euro V engine in combination with top notch Hydraulic Components..
The machine, despite its extremely small size, appears surprisingly simple to control even in moments when maximum caution and precision are required..
Kubota D722 engine
380mm bucket with teeth
Swing boom
Canopy
Rubber Truck
H/L speed
Retractable rubber tracks
Auxiliary hydraulic Pipeline
Two year warranty
Performance
MINI EXCAVATOR ZA13A

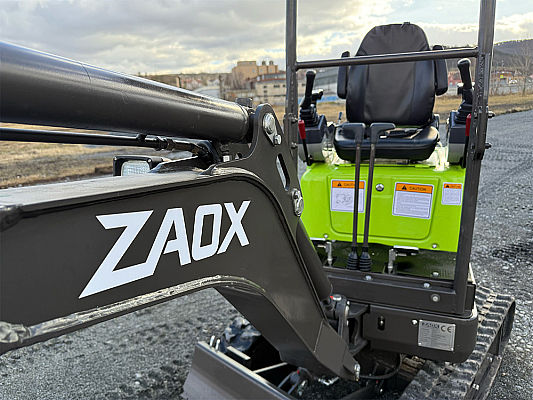

The ZA13A has a clean, well-proportioned design—compact, tidy, and sharp-lined, with a balanced look from every angle. It’s simple but refined, with a modern, professional presence that feels solid without trying too hard. The shapes and proportions are clearly intentional, giving it a coherent, good-looking profile even in the details. It doesn’t rely on gimmicks—just a confident, work-ready design.
MINI EXCAVATOR ZA13A

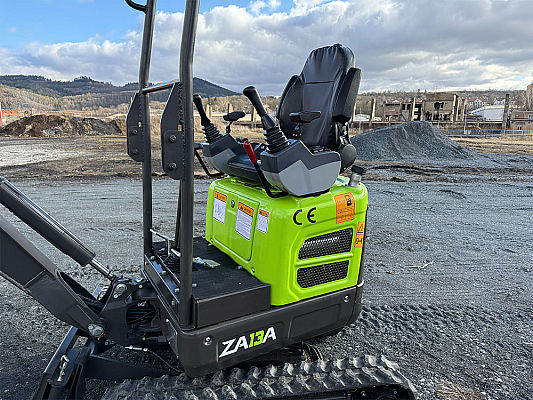

The ZA13A operator station is clean and straightforward—everything sits where you expect it, with no clutter. Its hydraulic servo controls make movements light and progressive, so you stay precise during finishing work and tight maneuvers. Levers and pedals are laid out naturally to reduce fatigue and small mistakes over long hours. It’s a setup designed for real operators, not just for show.
MINI EXCAVATOR ZA13A

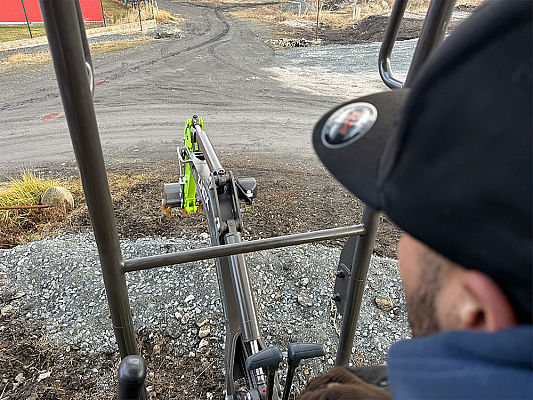

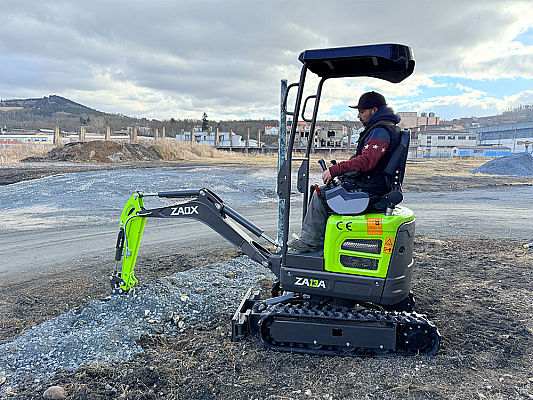

In real work conditions, the ZA13A shines when you need to operate in tight spaces without losing control. Compact and well-planted on its tracks, it stays stable while digging and placing material precisely, even on uneven ground. The boom and arm respond progressively, helping you cut clean trenches and keep finishing work neat without jerky movements. It’s the kind of machine that lets you keep a steady pace instead of fighting the controls.
MINI EXCAVATOR ZA13A

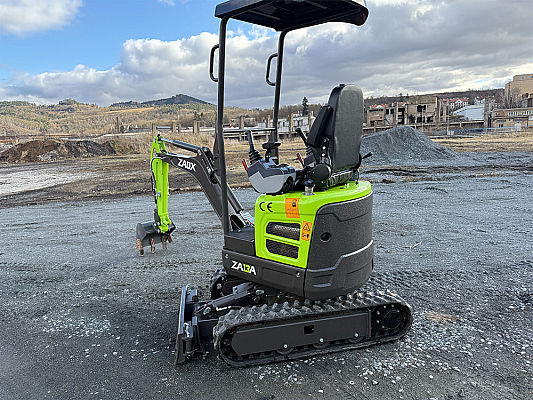

The ZA13A’s retractable undercarriage is one of those features you really feel on the job. It adjusts from 760 to 980 mm—narrow to fit through tight access, wider for extra footing when digging or working on soft ground. The layout stays clean and robust, with no unnecessary complexity, and it gives you instant stability. Simple idea, big impact on control and confidence.
Media
Machine Specification
| (mm) | Total Length | 3032 |
|---|---|---|
| (mm) | Total Width | 760/980 |
| (kg) | Machine Weight (with all fluids) | 1200 |
| (mm) | Canopy Height | 2270 |
| (mm) | Axle Base | 1010 |
| (mm) | Wheel (track) Distance | 580/760 |
| (mm) | Minimum Ground Clearance | 125 |
| (mm) | Tail Swing Radius | 550 |
| (㎡/mm) | Standard Bucket Capacity/Length | 0.025/380 |
|---|---|---|
| (rmp) | Swing Speed | 0-12 |
| (°) | Gradeability | 30 |
| (KN) | Max. Bucket Digging Force | 9 |
| (KN) | Max. Arm Digging Force | 5.5 |
| Engine Model | KUBOTA D722 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 10.2[13.8]/2500 |
| (MPa) | System Pressure | 17 |
| (L) | Fuel Tank Capacity | 10 |
| (L) | Hydraulic Circuit Capacity | 21 |
| (L) | Cooling Circuit Capacity | 4 |
| (L) | Engine Oil Capacity | 2.5 |
| (m³) | Bucket capacity | 0.023 |
| (mm) | Max. Digging Height | 3107 |
|---|---|---|
| (mm) | Max. Dumping Height | 2172 |
| (mm) | Max. Digging Depth | 1835 |
| (mm) | Max. Vertical Digging Depth | 1709 |
| (mm) | Max. Digging Radius | 3422 |
| (mm) | Max. Swing Radius | 1389 |
| (mm) | MAx. Dozer Blade Lifting Distance | XXX |
| (mm) | MAx. Dozer Blade Cutting Distance | XXX |
Stock Machines
| Machinery Size | ||
|---|---|---|
| (mm) | Total Length | 3032 |
| (mm) | Total Width | 760/980 |
| (kg) | Machine Weight (with all fluids) | 1200 |
| (mm) | Canopy Height | 2270 |
| (mm) | Axle Base | 1010 |
| (mm) | Wheel (track) Distance | 580/760 |
| (mm) | Minimum Ground Clearance | 125 |
| (mm) | Tail Swing Radius | 550 |
| Tech. Specifications | ||
| (㎡/mm) | Standard Bucket Capacity/Length | 0.025/380 |
| (rmp) | Swing Speed | 0-12 |
| (°) | Gradeability | 30 |
| (KN) | Max. Bucket Digging Force | 9 |
| (KN) | Max. Arm Digging Force | 5.5 |
| Engine Model | KUBOTA D722 | |
| (Kw(HP)/rpm) | Power/Revolution speed | 10.2[13.8]/2500 |
| (MPa) | System Pressure | 17 |
| (L) | Fuel Tank Capacity | 10 |
| (L) | Hydraulic Circuit Capacity | 21 |
| (L) | Cooling Circuit Capacity | 4 |
| (L) | Engine Oil Capacity | 2.5 |
| (m³) | Bucket capacity | 0.023 |
| Working Range | ||
| (mm) | Max. Digging Height | 3107 |
| (mm) | Max. Dumping Height | 2172 |
| (mm) | Max. Digging Depth | 1835 |
| (mm) | Max. Vertical Digging Depth | 1709 |
| (mm) | Max. Digging Radius | 3422 |
| (mm) | Max. Swing Radius | 1389 |
| (mm) | MAx. Dozer Blade Lifting Distance | XXX |
| (mm) | MAx. Dozer Blade Cutting Distance | XXX |
| Machinery Size | ||
|---|---|---|
| Total Length | ||
| (mm) | 3032 | |
| Total Width | ||
| (mm) | 760/980 | |
| Machine Weight (with all fluids) | ||
| (kg) | 1200 | |
| Canopy Height | ||
| (mm) | 2270 | |
| Axle Base | ||
| (mm) | 1010 | |
| Wheel (track) Distance | ||
| (mm) | 580/760 | |
| Minimum Ground Clearance | ||
| (mm) | 125 | |
| Tail Swing Radius | ||
| (mm) | 550 | |
| Tech. Specifications | ||
| Standard Bucket Capacity/Length | ||
| (㎡/mm) | 0.025/380 | |
| Swing Speed | ||
| (rmp) | 0-12 | |
| Gradeability | ||
| (°) | 30 | |
| Max. Bucket Digging Force | ||
| (KN) | 9 | |
| Max. Arm Digging Force | ||
| (KN) | 5.5 | |
| Engine Model | ||
| KUBOTA D722 | ||
| Power/Revolution speed | ||
| (Kw(HP)/rpm) | 10.2[13.8]/2500 | |
| System Pressure | ||
| (MPa) | 17 | |
| Fuel Tank Capacity | ||
| (L) | 10 | |
| Hydraulic Circuit Capacity | ||
| (L) | 21 | |
| Cooling Circuit Capacity | ||
| (L) | 4 | |
| Engine Oil Capacity | ||
| (L) | 2.5 | |
| Bucket capacity | ||
| (m³) | 0.023 | |
| Working Range | ||
| Max. Digging Height | ||
| (mm) | 3107 | |
| Max. Dumping Height | ||
| (mm) | 2172 | |
| Max. Digging Depth | ||
| (mm) | 1835 | |
| Max. Vertical Digging Depth | ||
| (mm) | 1709 | |
| Max. Digging Radius | ||
| (mm) | 3422 | |
| Max. Swing Radius | ||
| (mm) | 1389 | |
| MAx. Dozer Blade Lifting Distance | ||
| (mm) | XXX | |
| MAx. Dozer Blade Cutting Distance | ||
| (mm) | XXX | |
