WEIGHT
488 Kg
Engine Model
BRIGGS & STRATTON
Box Capacity
0.5
The ZAOX ZD500 mini dumper is a robust and adaptable machine engineered to effortlessly tackle all your heavy lifting and material transportation requirements.
Its standard hydraulic lift system allows for seamless loading and unloading of materials, saving you both time and energy while providing precise control.
The ZD500’s bucket is a standout feature, offering an impressive 0.5 m² box capacity, ideal for transporting a wide range of materials such as soil, gravel, rocks, and more. Regardless of the terrain or payload, this mini dumper rises to the occasion.
Another key advantage is the ZD500’s compact design, with a slim width of just 840mm. This narrow build ensures exceptional maneuverability, even in confined spaces, making it a transformative solution for areas inaccessible to larger equipment.
Briggs & Stratton Gasoline Engine
Rubber Truck
Two year warranty
Hydraulic Transmission
Performance
MINI DUMPER ZD500

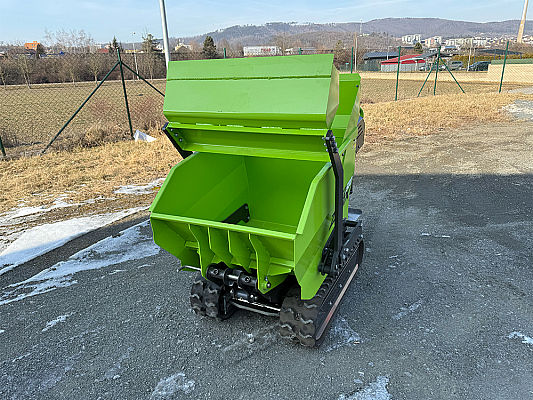

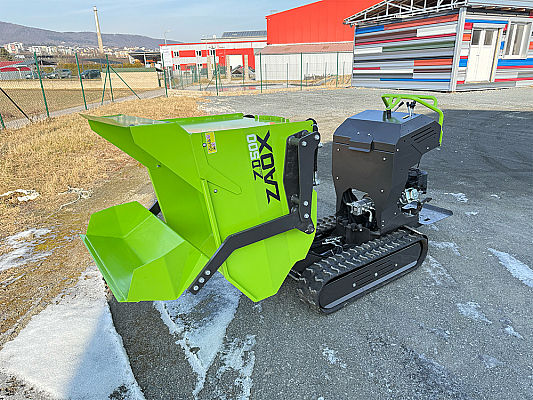

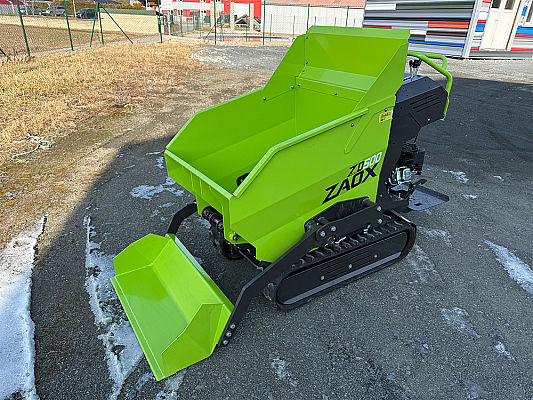

The ZD500 box is built for easy loading and clean dumping: high sides, a deep tub shape, and a wide opening that works great with soil, gravel, and debris. Capacity is 0.5 m³, and thanks to hydraulic dumping, you unload smoothly and with full control. The tracked undercarriage adds stability and traction, so it stays useful even on uneven ground. It’s a small machine, but made to carry a lot and work fast.
MINI DUMPER ZD500
The ZD500 controls are essential and very clear: a few levers, visible labels, and everything designed to work without wasting time. Even first-time users understand it fast—how to move and how to manage dumping and maneuvers. It’s true job-site control: simple, tough, and built to be reliable every day. Less complexity = more rhythm and less stress.
MINI DUMPER ZD500

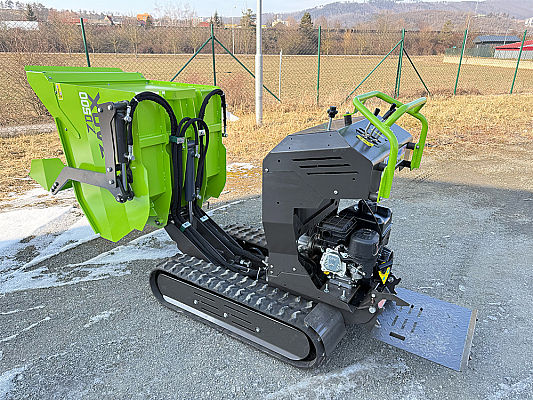

On the ZD500, the engine is well exposed and easy to access, so checks and basic maintenance stay quick and practical. On site, that makes a real difference: less downtime and more consistent work. The engine area is protected but still easy to reach—ideal for fast inspections and simple service tasks. It’s a straightforward setup built for daily use.
Media
Machine Specification
| (mm) | Box length | 816 |
|---|---|---|
| (mm) | Box Width | 680 |
| (mm) | Box Depth | 620 |
| Box Type | Integrated/one-piece | |
| (mm) | Length | 1680 |
| (mm) | Width | 840 |
| (mm) | Height | 1275 |
| Engine Model | BRIGGS & STRATTON | |
|---|---|---|
| (Kw(HP)/rpm) | Power/Revolution speed | 4.9[6.5]/3600 |
| (Kg) | Operative weight | 488 |
| Cooling Mode | Air-cooled | |
| Fuel | Gasoline | |
| Start Mode | Manual | |
| Driving Mode | Hydraulic | |
| Steering Mode | Hydraulic | |
| Unload Mode | Hydraulic | |
| (m³) | Box Capacity | 0.5 |
| (Kg) | Loading Capacity | 500 |
| (mm) | Track Width | 180 |
| (L/min) | Flow of Pump | 6 |
| (kg) | Net Weight | 413 |
Stock Machines
| Machinery Size | ||
|---|---|---|
| (mm) | Box length | 816 |
| (mm) | Box Width | 680 |
| (mm) | Box Depth | 620 |
| Box Type | Integrated/one-piece | |
| (mm) | Length | 1680 |
| (mm) | Width | 840 |
| (mm) | Height | 1275 |
| Tech. Specifications | ||
| Engine Model | BRIGGS & STRATTON | |
| (Kw(HP)/rpm) | Power/Revolution speed | 4.9[6.5]/3600 |
| (Kg) | Operative weight | 488 |
| Cooling Mode | Air-cooled | |
| Fuel | Gasoline | |
| Start Mode | Manual | |
| Driving Mode | Hydraulic | |
| Steering Mode | Hydraulic | |
| Unload Mode | Hydraulic | |
| (m³) | Box Capacity | 0.5 |
| (Kg) | Loading Capacity | 500 |
| (mm) | Track Width | 180 |
| (L/min) | Flow of Pump | 6 |
| (kg) | Net Weight | 413 |
| Machinery Size | ||
|---|---|---|
| Box length | ||
| (mm) | 816 | |
| Box Width | ||
| (mm) | 680 | |
| Box Depth | ||
| (mm) | 620 | |
| Box Type | ||
| Integrated/one-piece | ||
| Length | ||
| (mm) | 1680 | |
| Width | ||
| (mm) | 840 | |
| Height | ||
| (mm) | 1275 | |
| Tech. Specifications | ||
| Engine Model | ||
| BRIGGS & STRATTON | ||
| Power/Revolution speed | ||
| (Kw(HP)/rpm) | 4.9[6.5]/3600 | |
| Operative weight | ||
| (Kg) | 488 | |
| Cooling Mode | ||
| Air-cooled | ||
| Fuel | ||
| Gasoline | ||
| Start Mode | ||
| Manual | ||
| Driving Mode | ||
| Hydraulic | ||
| Steering Mode | ||
| Hydraulic | ||
| Unload Mode | ||
| Hydraulic | ||
| Box Capacity | ||
| (m³) | 0.5 | |
| Loading Capacity | ||
| (Kg) | 500 | |
| Track Width | ||
| (mm) | 180 | |
| Flow of Pump | ||
| (L/min) | 6 | |
| Net Weight | ||
| (kg) | 413 | |
